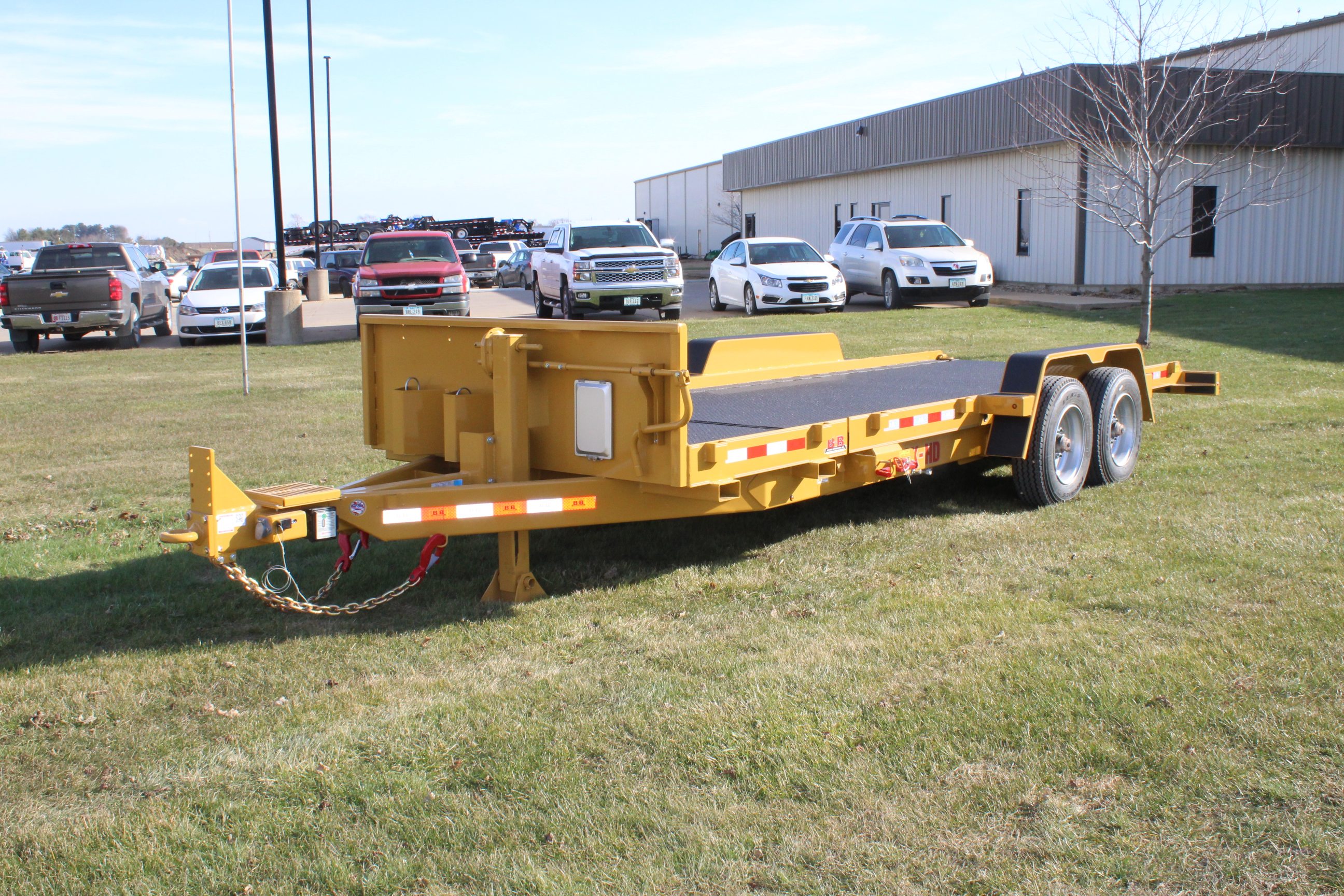

The 20K tube tilt is a beast of a trailer, with no peers in its class, and is equipped with twin 10K torflex axles with 17.5 super single tires. The trailer is built with a heavy duty frame, while still maintaining a full 83" between the fenders and has an added standard option of fender guards. It is available with 2-8' stationary decks, with either 16' or 18' of tilt. Pull-type and gooseneck configurations are available.
Product Features
GVWR20,000 lbs.
Weight5,050 lbs.
Length4' stationary + 16' tilt
Width83" between fenders
Frame8 x 2 x 1/4 tube
Unloaded Deck Height25"
Side Rails5 x 5 x 5/16 angle (flush floor)
Crossmembers3" channels (12" ¢'s)
FendersHD Fully Welded 11 gauge
JackSingle 12K dropleg
Hitch2 5/16ʺ adj. coupler or pintle
Safety Chains(2) 3/8" Gr. 70
Tie-Downsstake pockets and (4) D-rings
StorageChain tray in tongue
Axles10,000 lb. Dexter
SuspensionTorflex
Tire and Wheel235/75R-17.5 16 ply super single
Decking2 x 8 No. 1 Treated pine
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
Details
- The pioneer in the tandem axle 20K GVWR low-profile tilt market
- Pallet fork holders and fender guides
- flush floor
- true 83" wide between fenders
- Able to add bolt-on toolbox or spare tire mount on standard trailer
