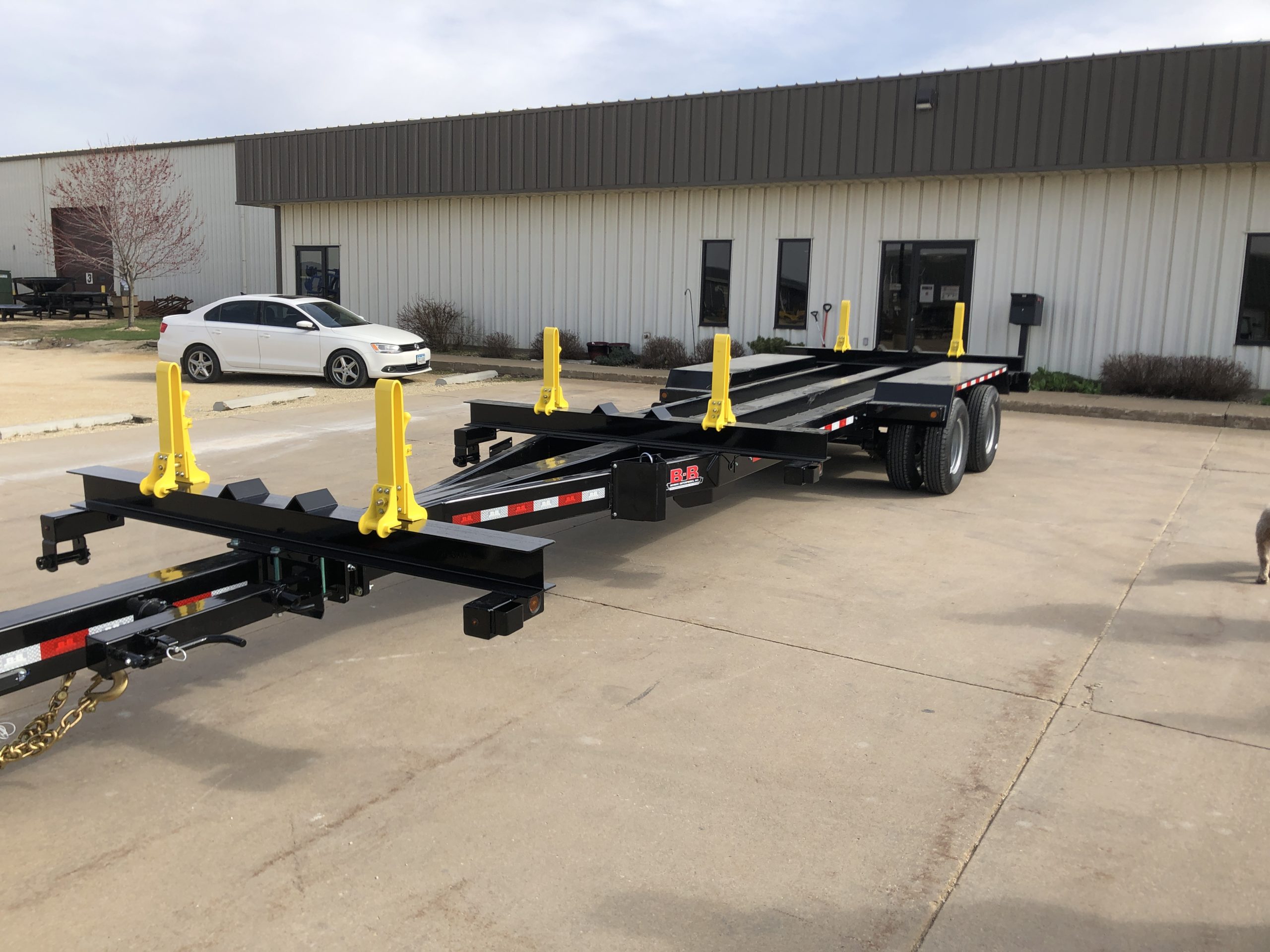

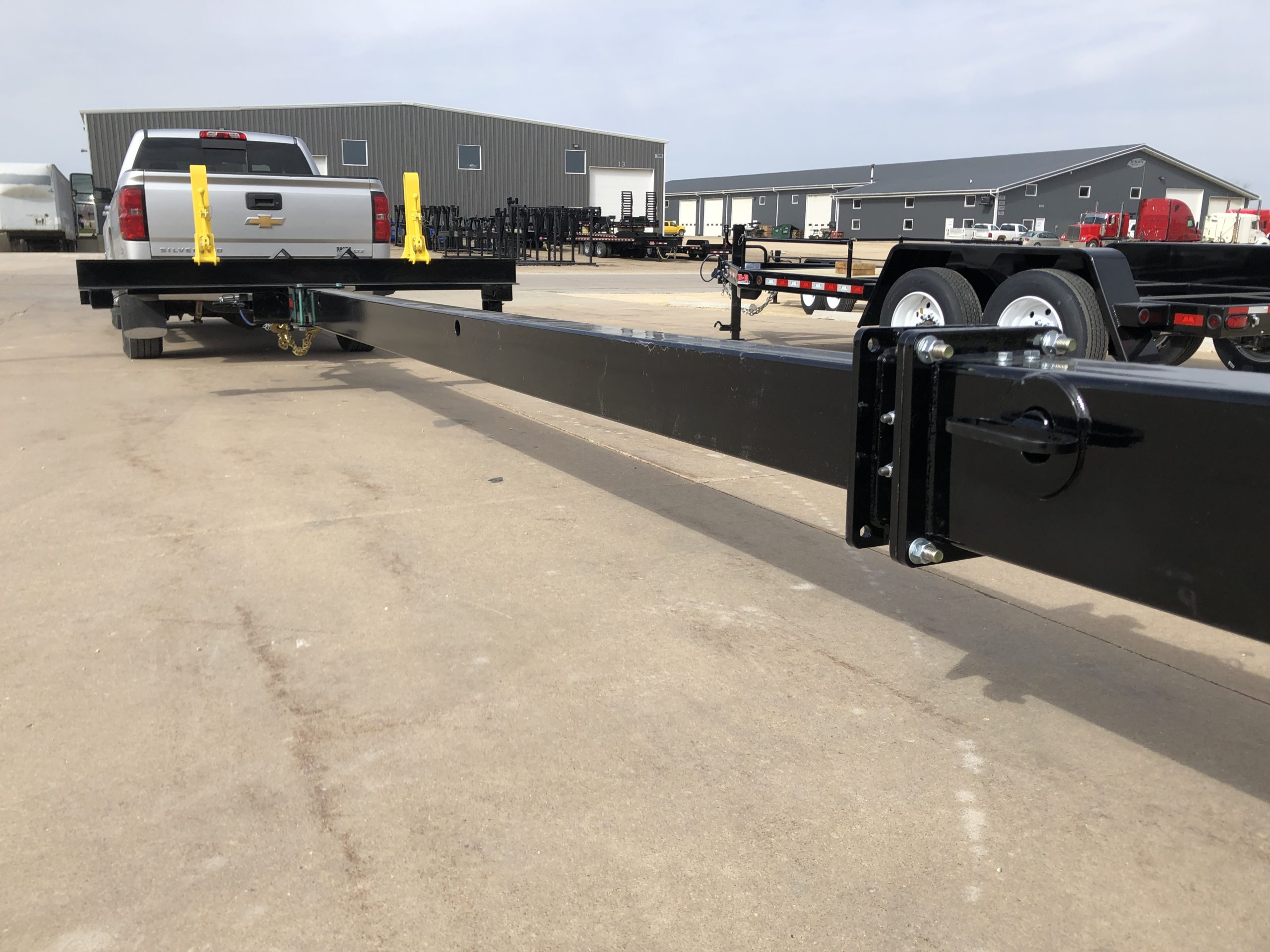

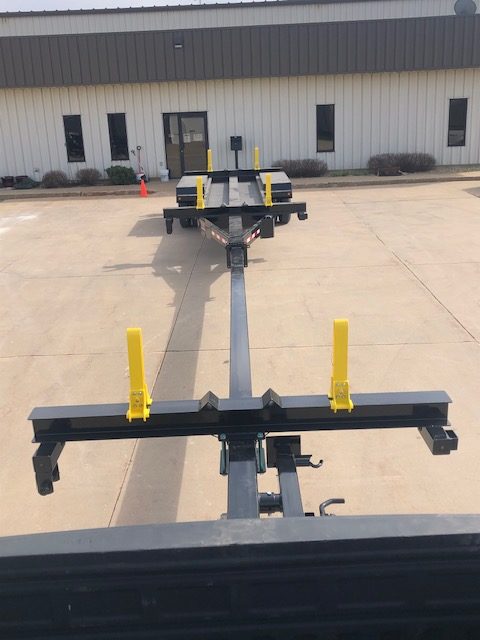

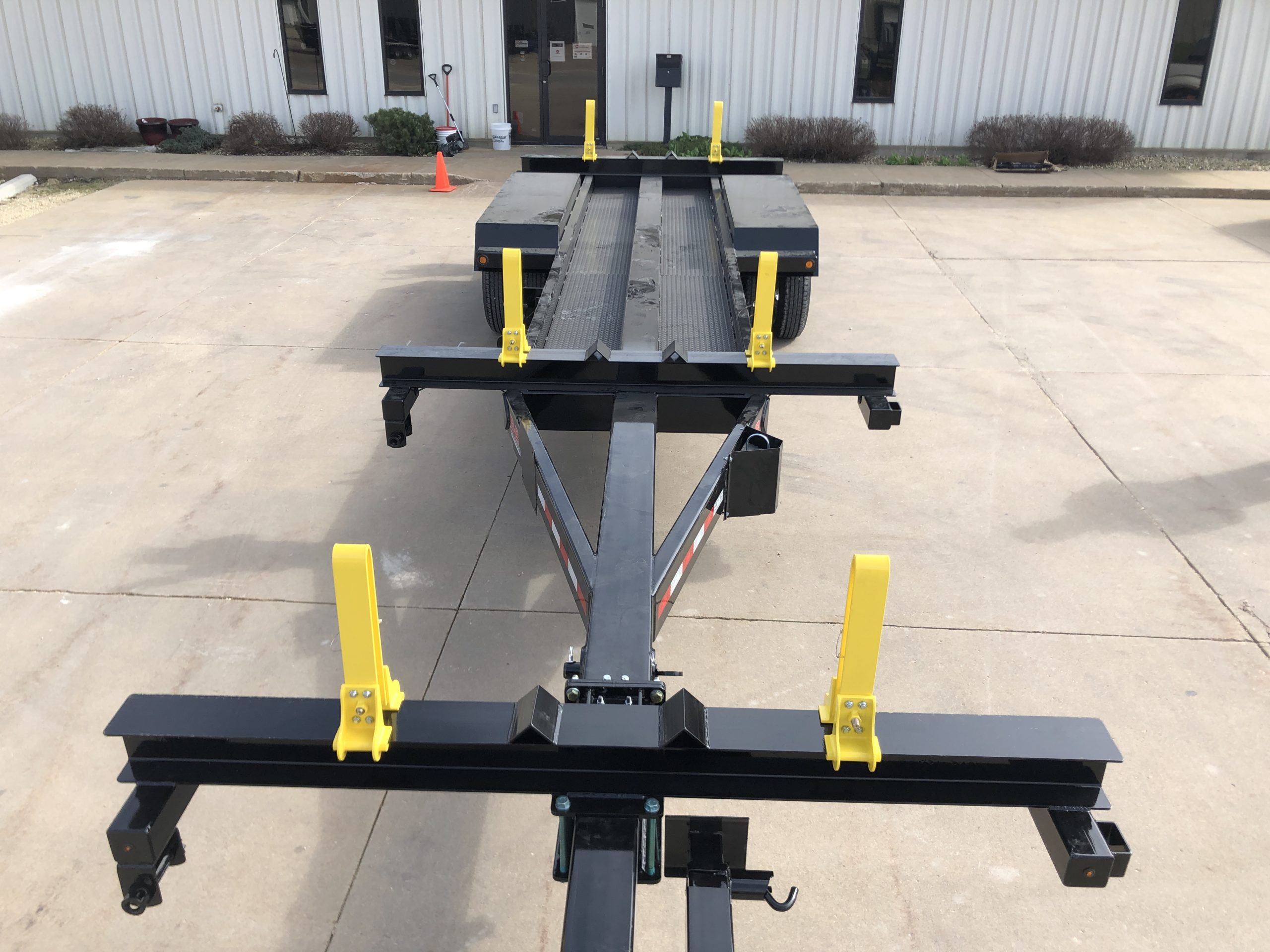

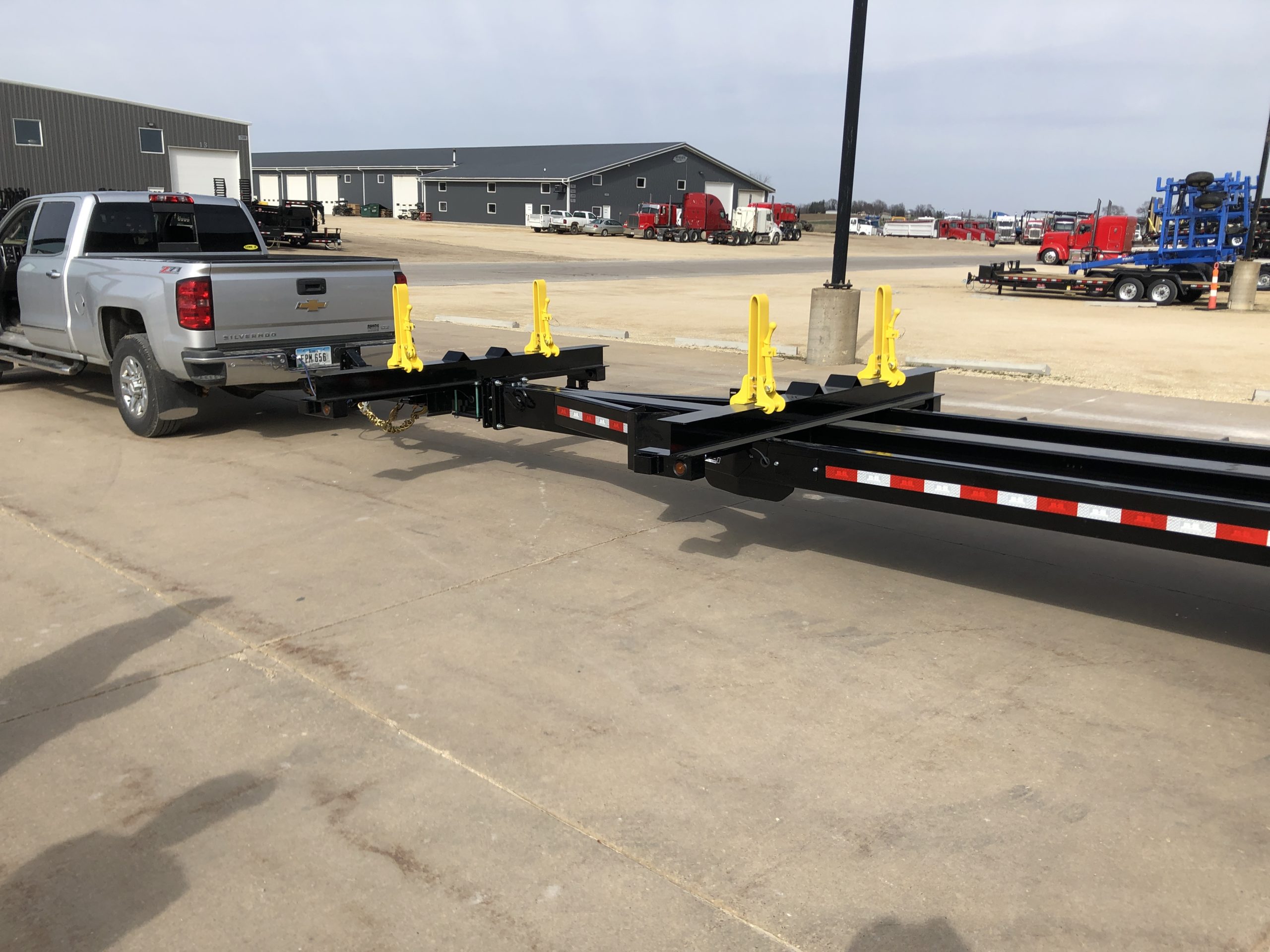

Telescoping pole trailers are offered in single and dual axle configurations with GVWs ranging from 10,000-40,000 lbs. Trailer can be equipped with either electric or air brakes. Many different lengths are available. Standard sizes are 20-32' (retracted-extended), 26'-40' (retracted-extended), and 32'-48' (retracted-extended). Trailers come standard with two fixed bolsters on cargo area of trailer and a bolt-on bolster that telescopes with the tongue of the trailer. Each bolster has two sliding stanchions, a ratchet w/straps, and a tie down.
Product Features
GVWR10,000-40,000 lbs.
WeightVaries
Length20-32' adj. , 26'-40' adj. , 32'-48' adj.
Width102"

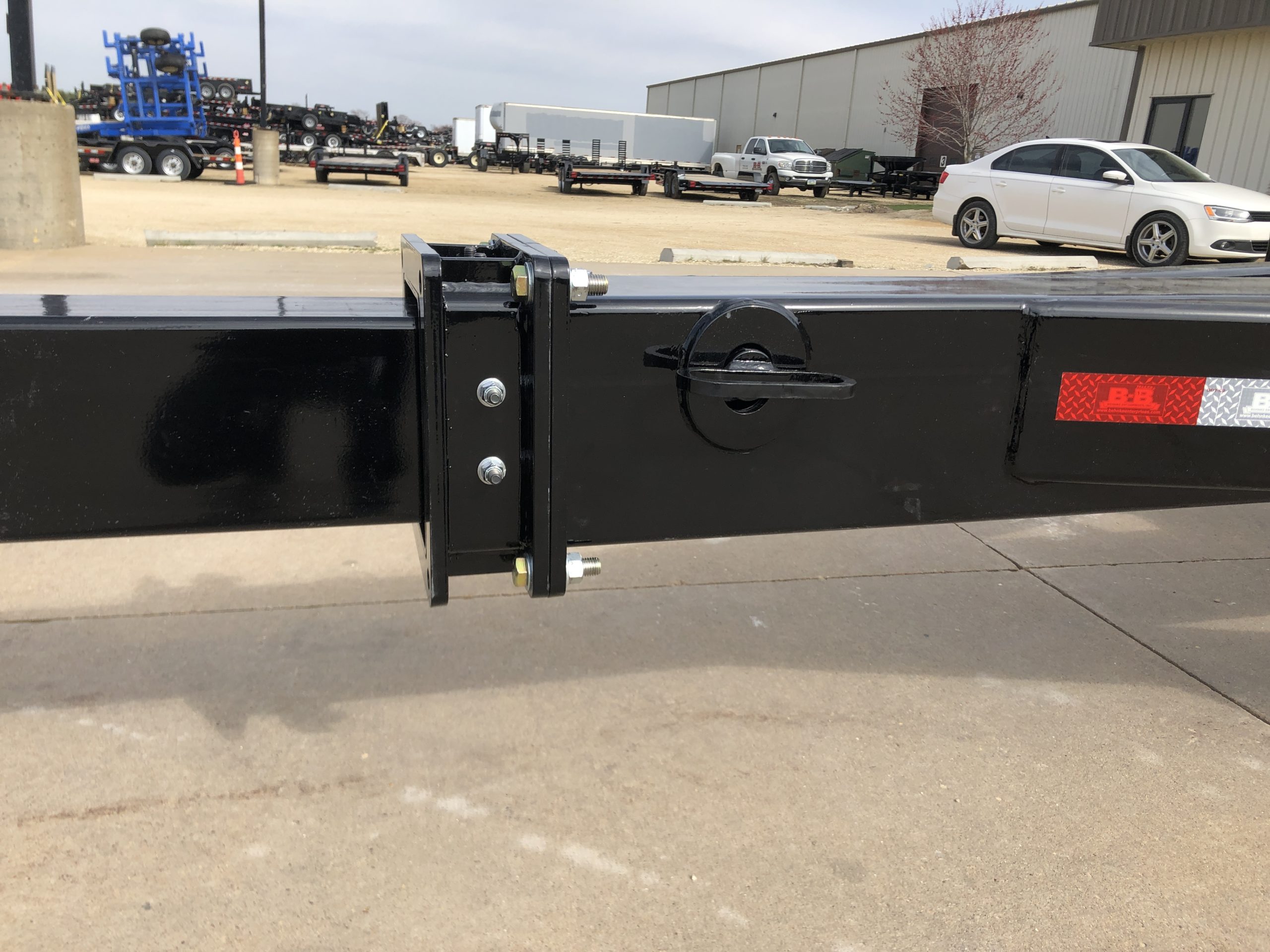

Frame10 x 8 x 1/4 receiver tube with 8 x 6 x 1/4 telescoping tongue tube
FendersHeavy duty 11 gauge fully welded

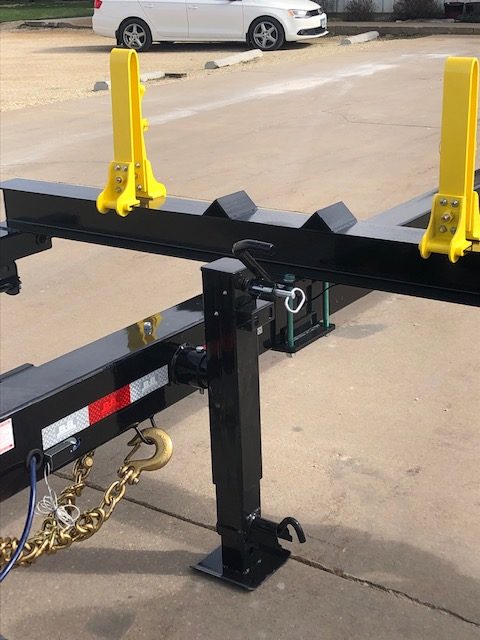

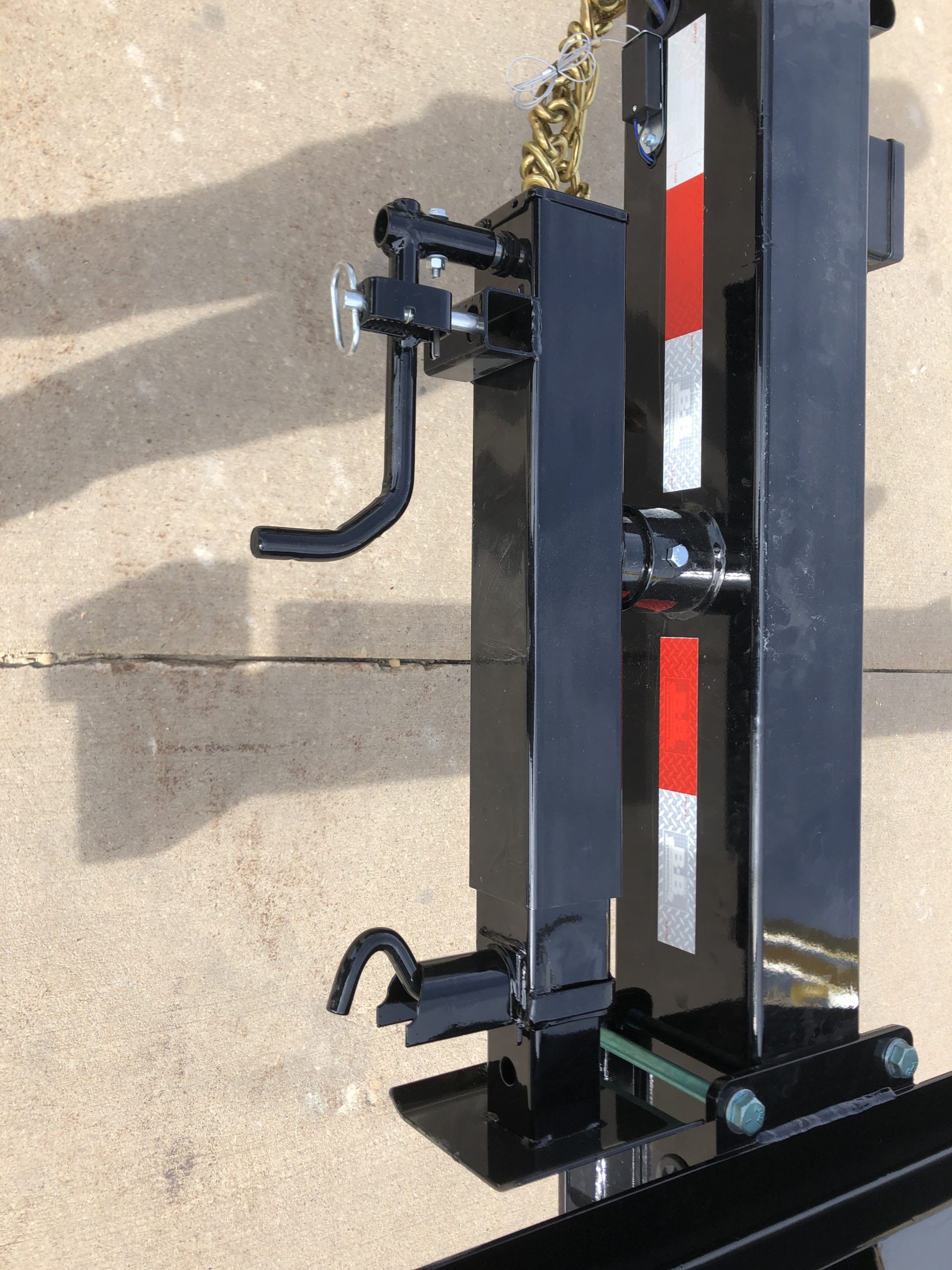

Jack12,000 lb. drop leg or semi-style jack
Hitch2 1/2" or 3" Pintle
Safety Chains1/2" Grade 70
Tie-DownsBolsters w/sliding stanchions. Equipped with ratchets, straps, and tie-downs
StorageWheel chocks w/holders
Axles10-15K electric brake, or 10-20K air brake axles
SuspensionDexter Spring, Hutch H9700, or Ridewell Air Ride
Tire and Wheel235/80R-16E or 235/75R017.5 duals
DeckingCargo area w/tread plate floor
LightsLED flush mount
Elect. PlugRV plug or Semi plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
Details
- Poly plastic pads used for smooth transition when retracting/extending the tongue.
- All wiring on a track system enclosed in the tongue.

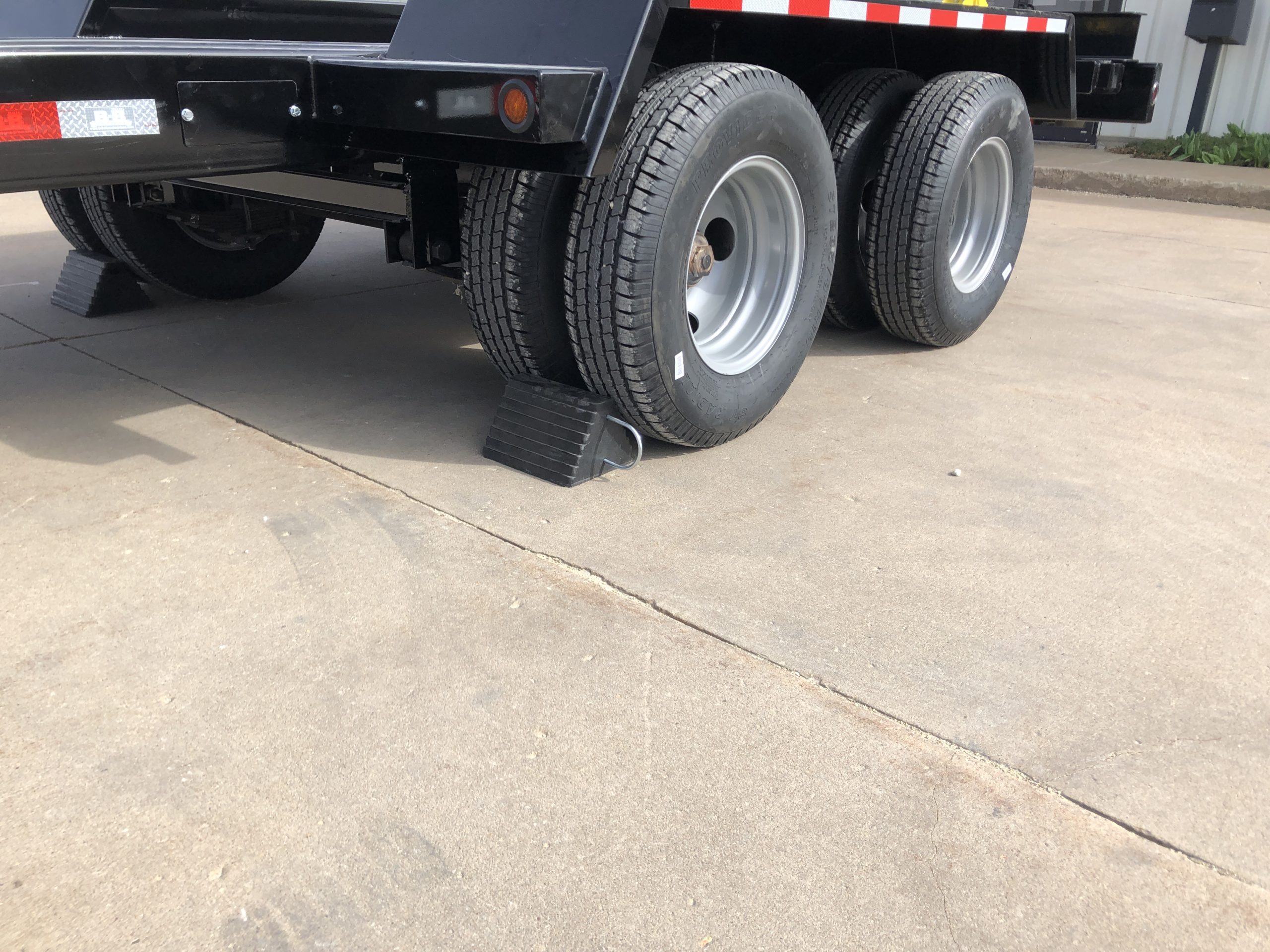

- Wheel chocks with holders comes standard
- Breaker bar with holder comes standard.
