Our tandem axle drop downs have a 14,000 lb. GVW and are available in 12' or 14' lengths. This trailer utilizes a tube frame with access holes throughout for easy maintenance and upkeep. Fully greased pivot points and grease zerks for maintenance will keep this trailer running like a dream.
Weight4,200 or 4,500 lbs.
Length12' or 14' bed w/steel sides
Width76" between fenders
Unloaded Deck Height12"
Side Rails11 gauge steel sides
JackSingle 12K dropleg
Hitch2 5/16ʺ adj. coupler or pintle
Safety Chains(2) 3/8" Gr. 43
Tie-Downs(6) D-rings in bed

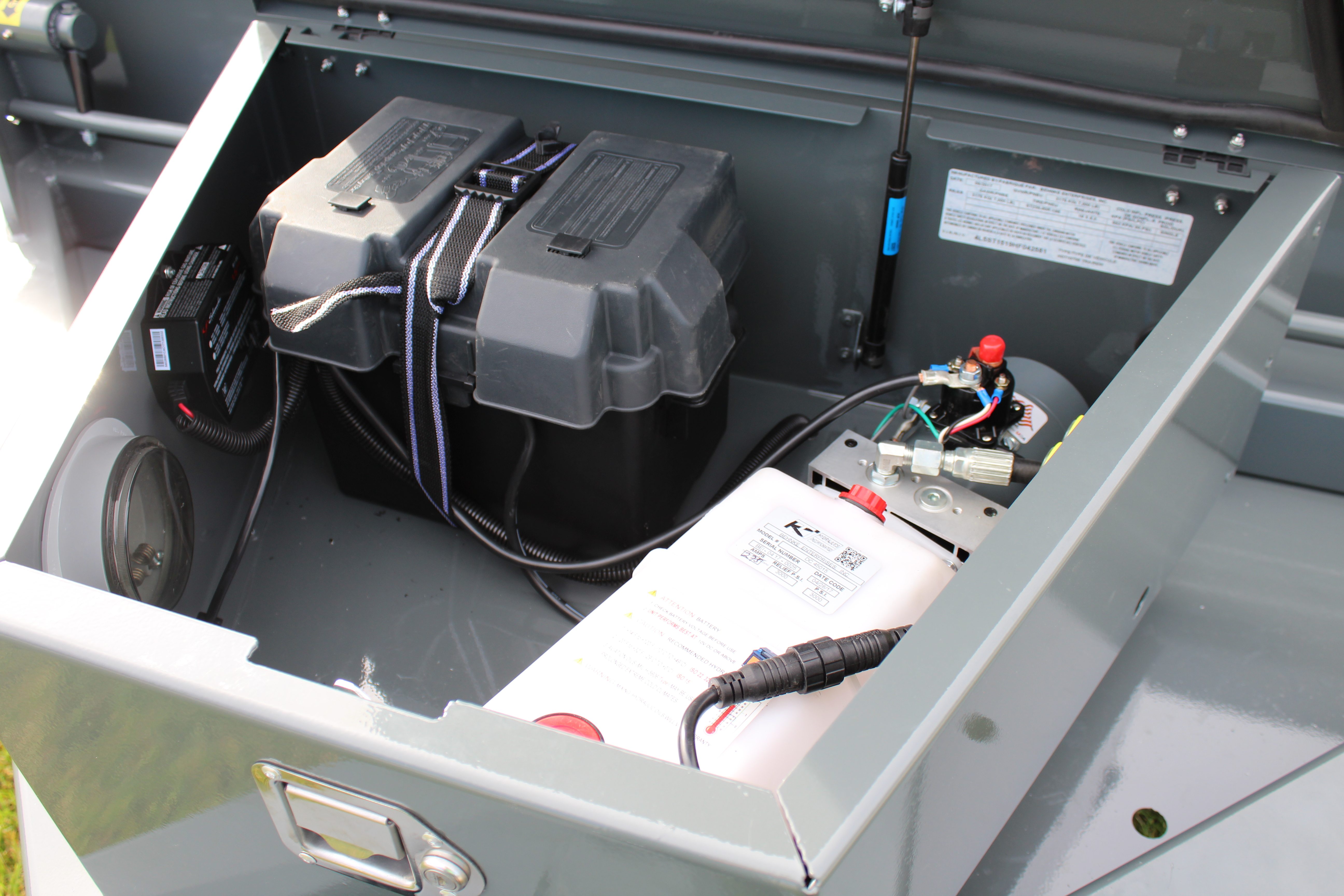

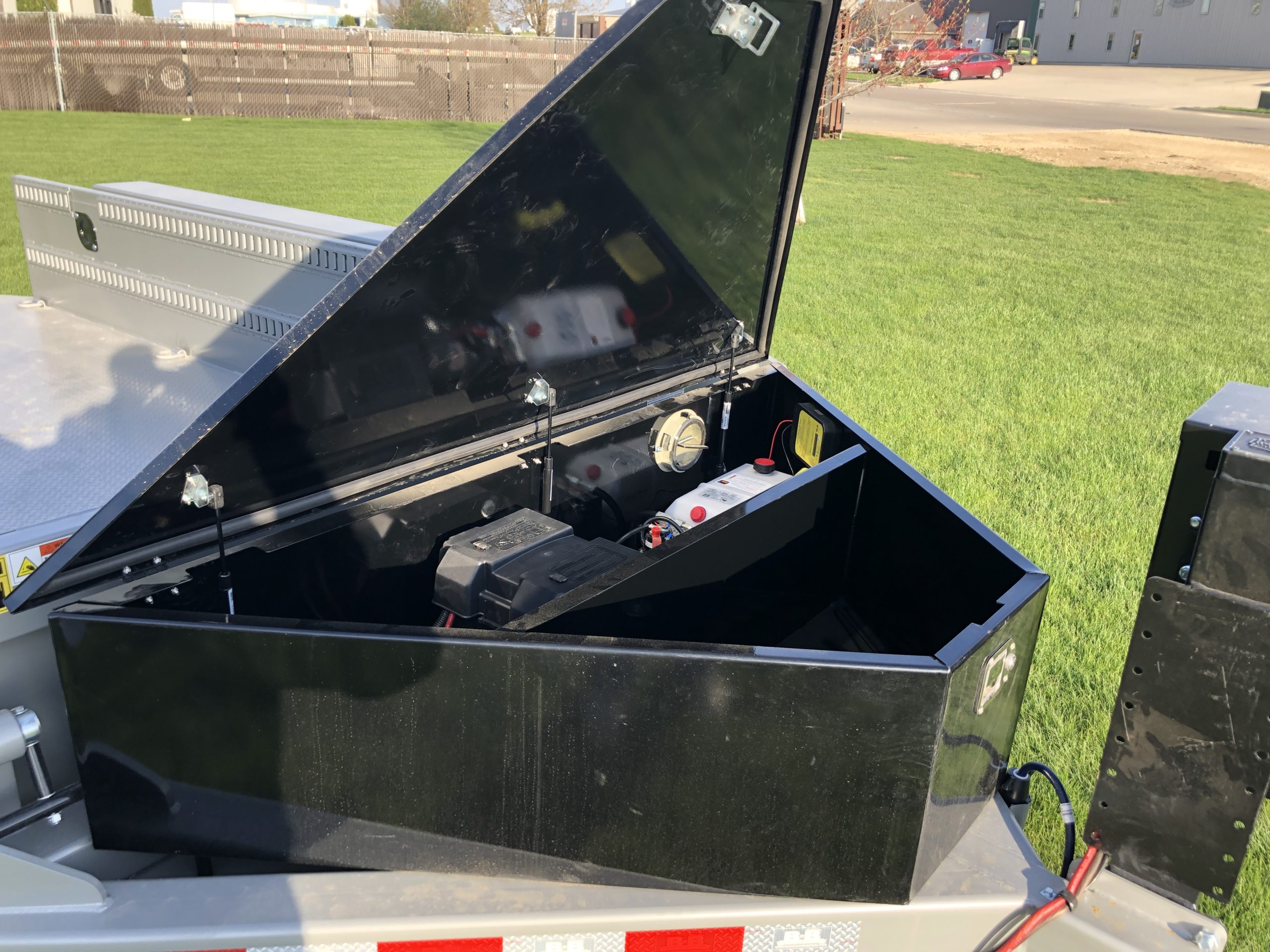

StorageToolbox in tongue w/pump
Axles(4) 3,500 lb spindles
Tire and WheelST235/80R-16E
Decking3/16" tread plate floor
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
- 4" x 20" hydraulic cylinder
- KTI hydraulic unit for raising/lowering

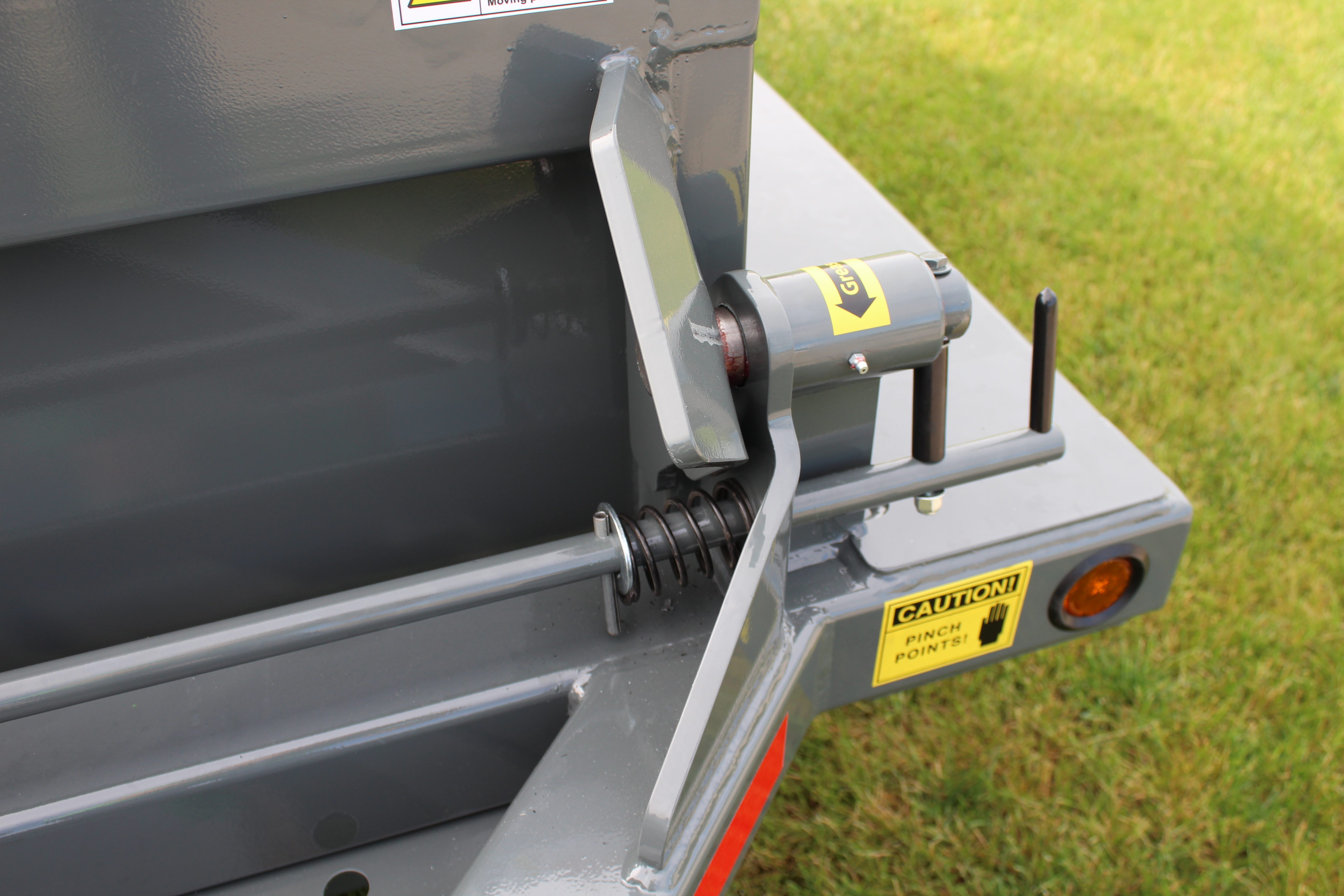

- auto-latch for locking/unlocking
- Removable covers for rollings making maitenance easy
