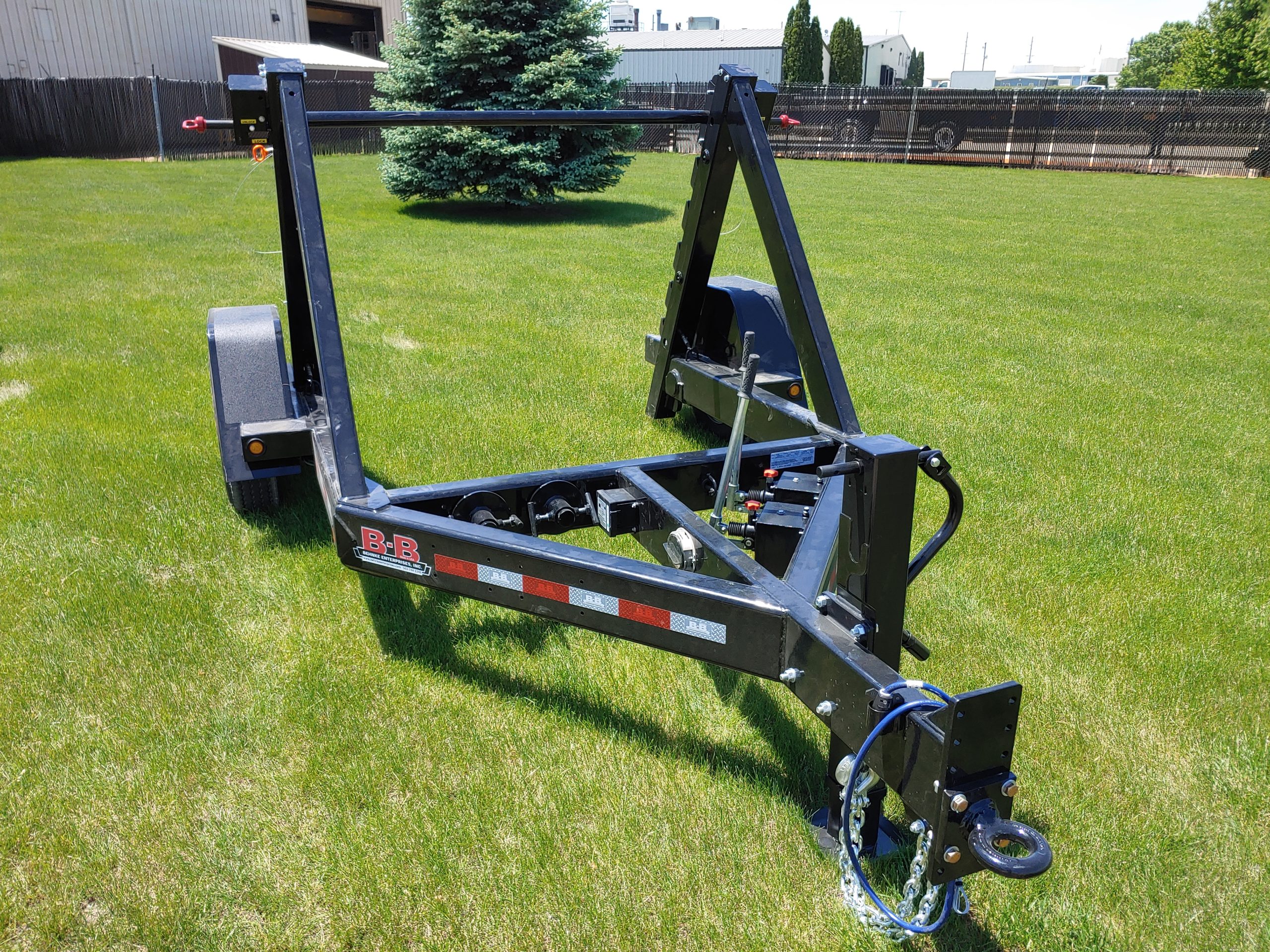

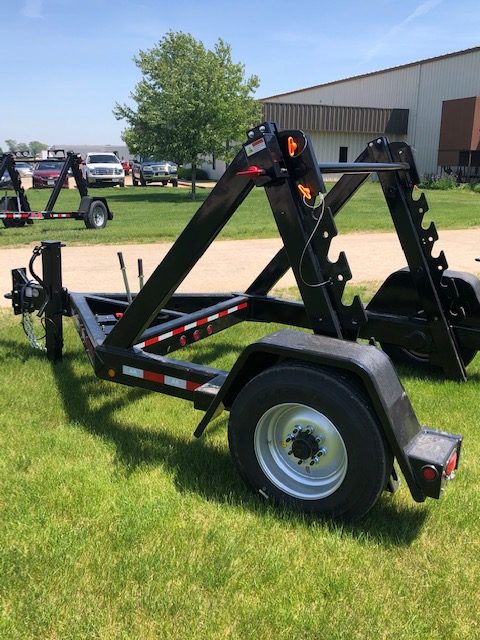

Single axle reel trailers are single axle trailers with 7,000-10,000 GVWs. Trailers are built to accommodate a single 60" x 120" cable reel. Standard loading system contains hydraulic cylinders with dual hand pumps w/reservoirs. Electric/hydraulic loading system is available. Winder option is also available. A rubber suspension is available for a smoother ride.
Product Features
GVWR7,000-10,000 lbs.
Weight1,760-2,340 lbs.
FrameHeavy duty tube frame with 5 x 5 tube uprights
FendersHeavy duty 11 gauge fully welded
Jack20,000 lb. drop leg
Hitch2 1/2" or 3" Pintle
Safety Chains3/8" Grade 70

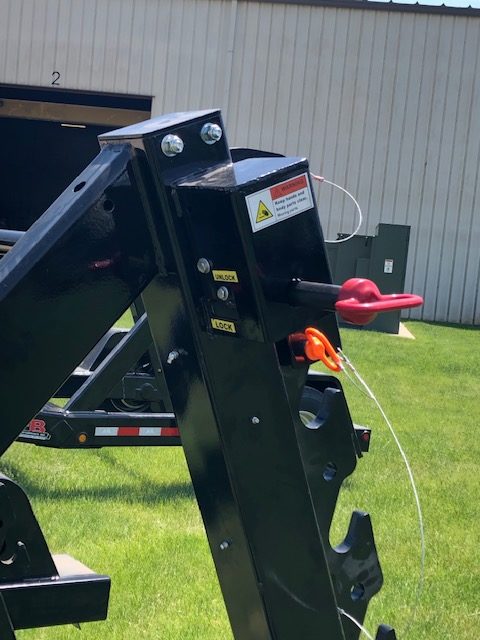

Tie-DownsAutomatic pin locking system

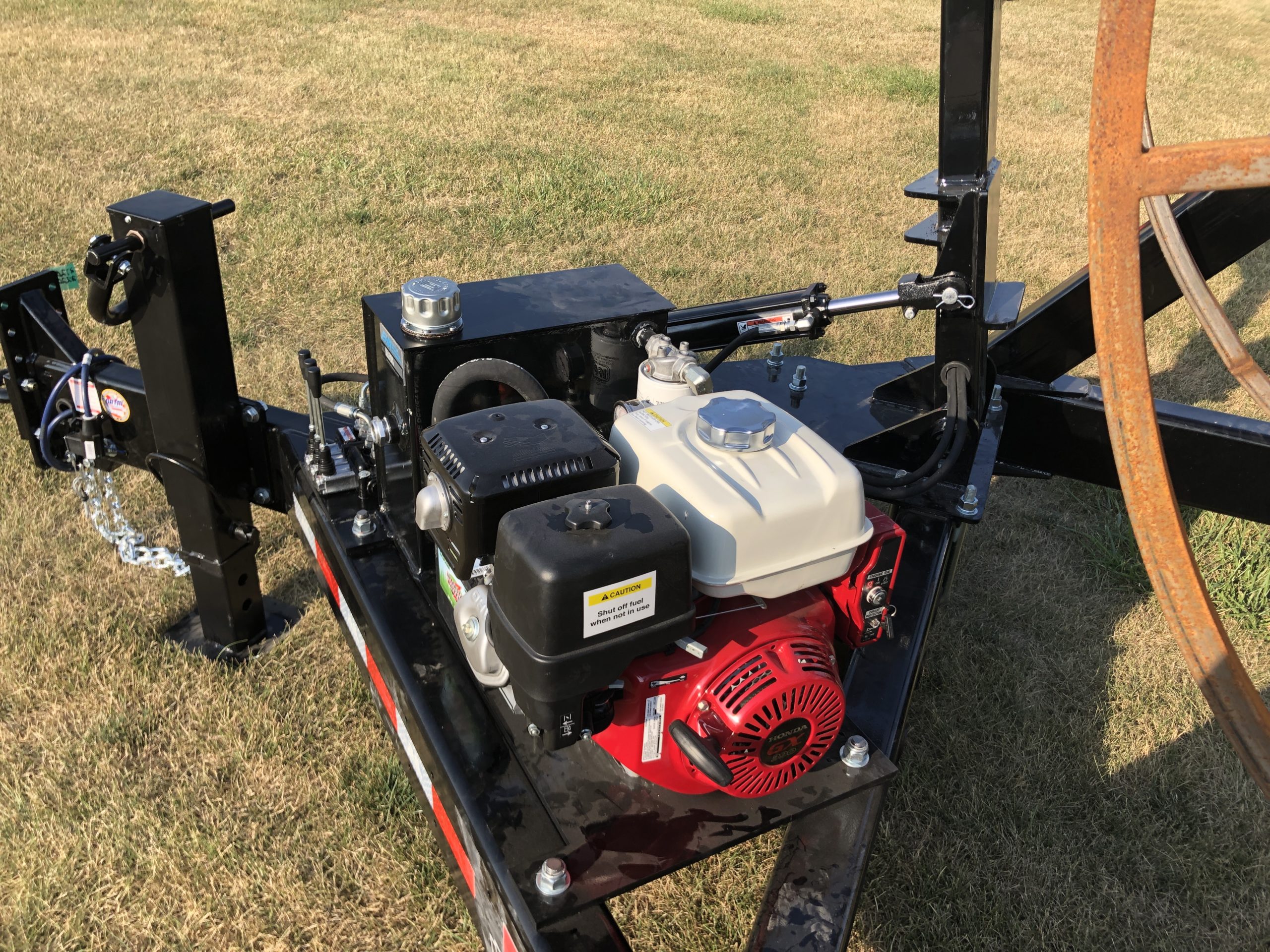

StorageDual hydraulic hand pumps w/reservoir or Electric/hydraulic pump in toolbox
Axles7,8, 9, or 10K Dexter spindles equipped w/brakes
SuspensionOptional rubber suspension available
Tire and Wheel235/80R-16E or 235/75R-17.5 single tire and wheel
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
Details
- Hydraulic or electric/hydraulic loading system
- Auto locking system
- 11 gauge heavy duty fendes
- Rubber suspension available for a smoother ride
