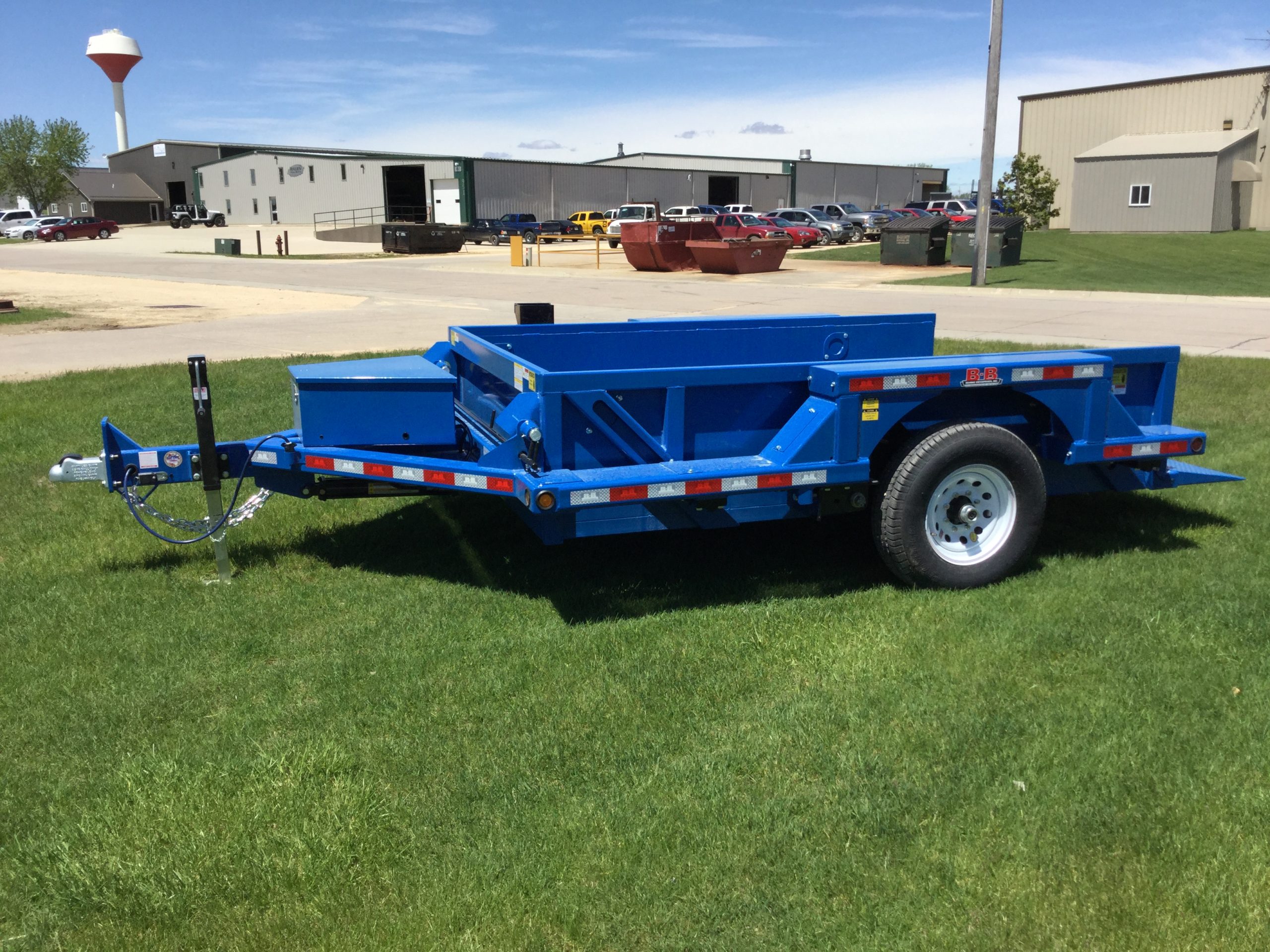

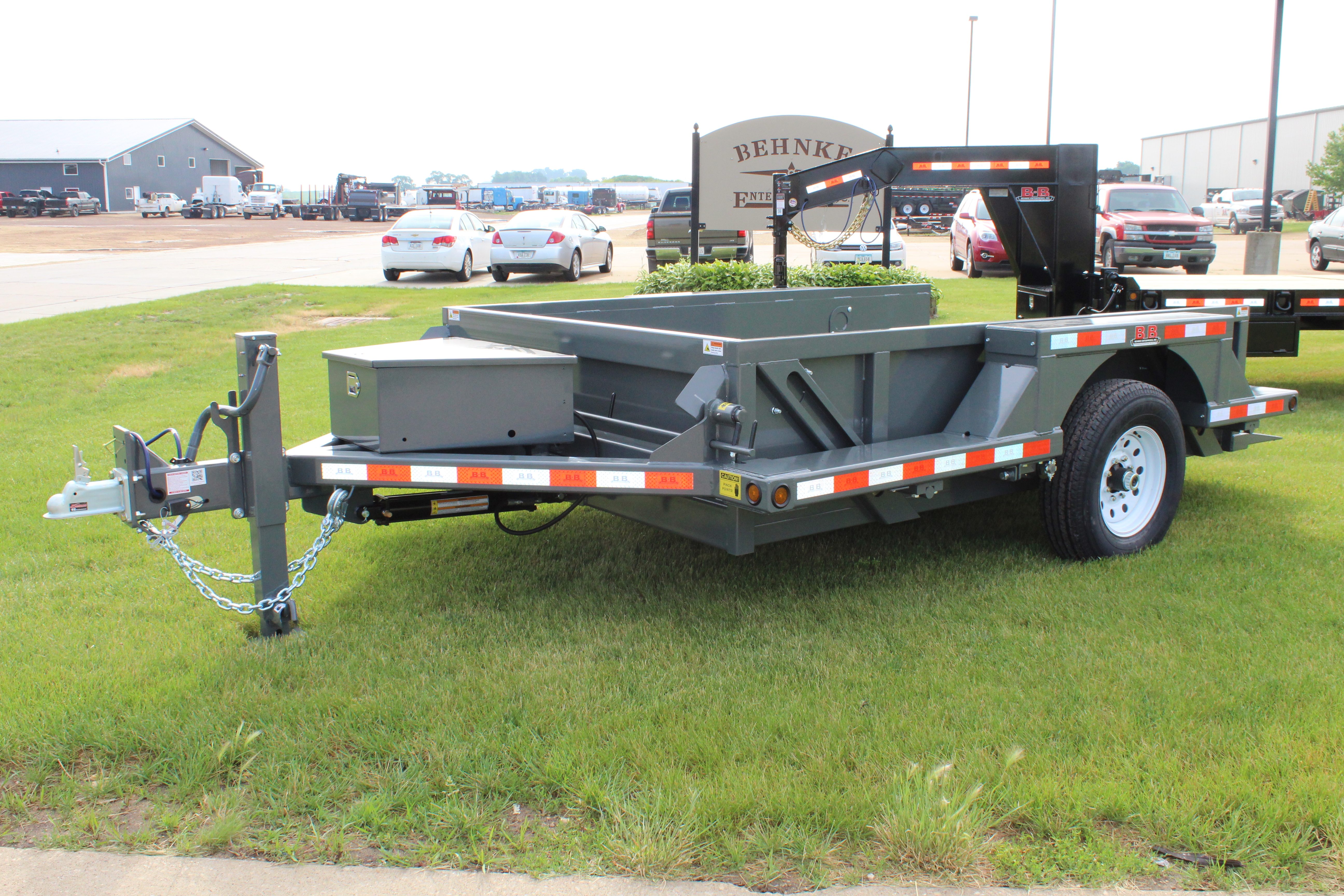

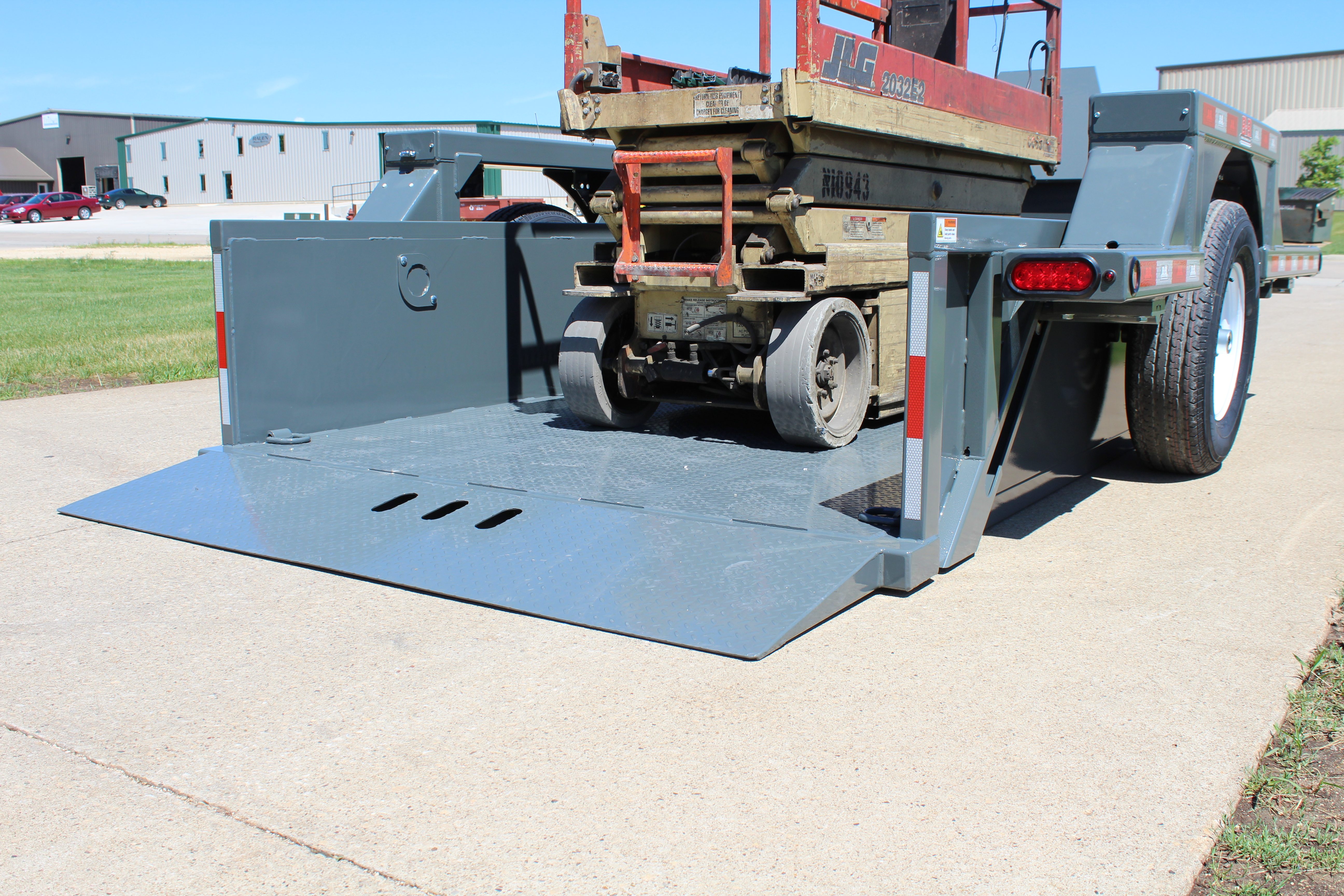

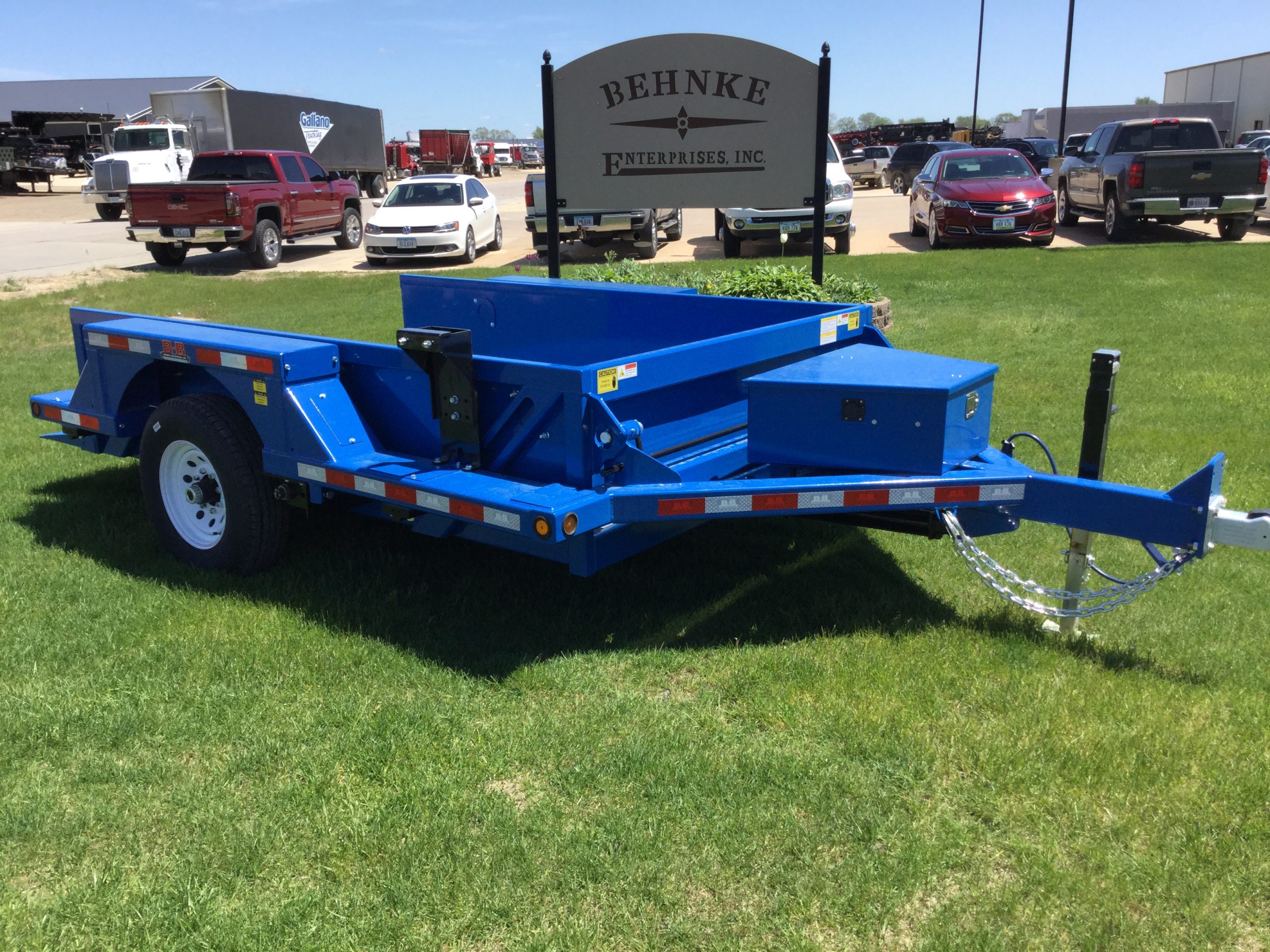

Single axle drop downs are available in 54" or 76"
widths and 8' or 10' bed lengths. This trailer utilizes a tube frame with access holes throughout for easy maintenance and upkeep. These have a 7,000 lb. capacity and are ideal for hauling equipment or materials that need a shallow load angle.
Weight2,760 or 3,200 lbs.
Length8' or 10' bed w/steel sides
Width54" (8' bed) or 76" (10' bed) wide box
Unloaded Deck Height12"
Side Rails11 gauge steel sides
JackSingle 7K dropleg
Hitch2 5/16ʺ adj. coupler or pintle
Safety Chains(2) 3/8" Gr. 43
Tie-Downs(6) D-rings in bed

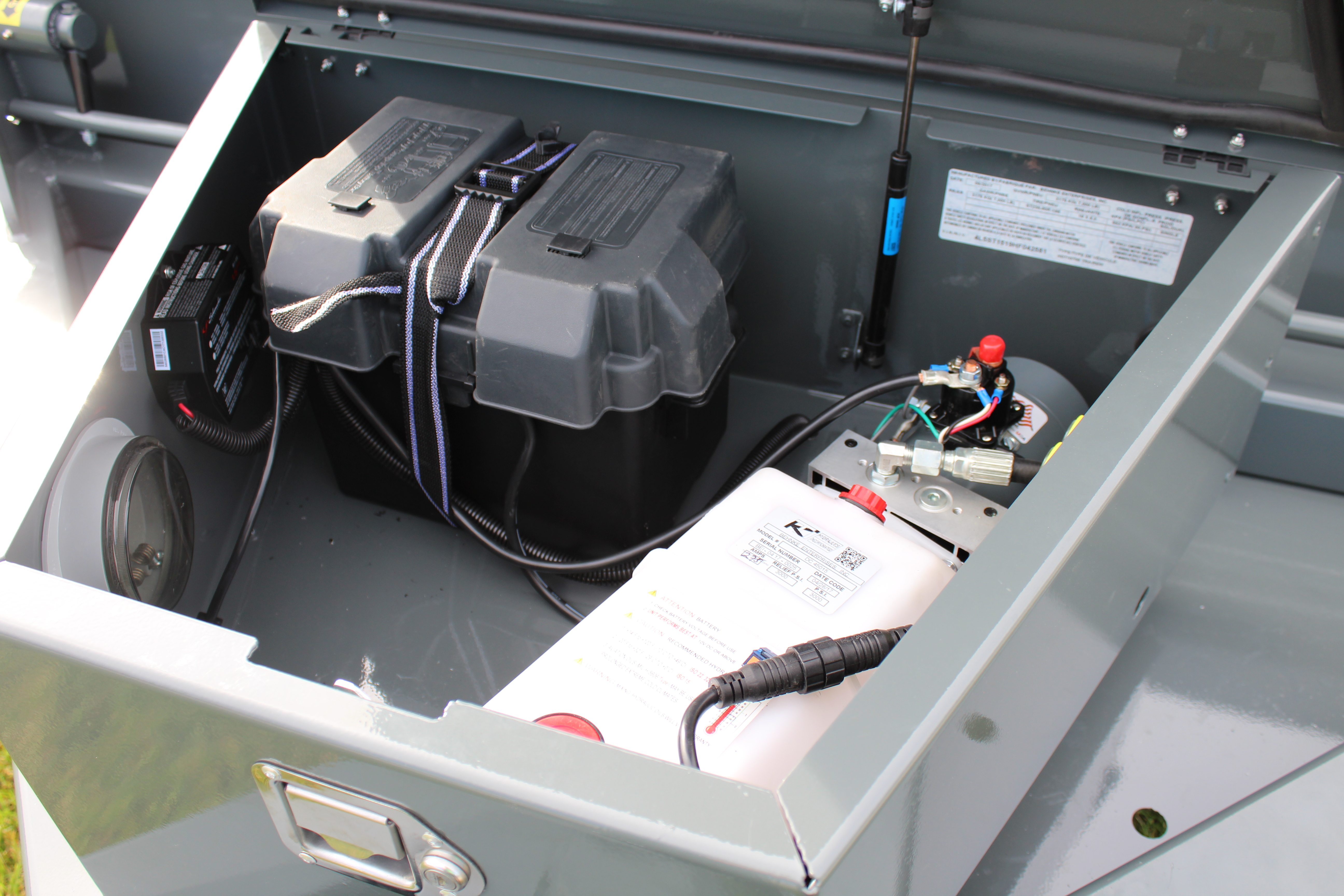

StorageToolbox in tongue w/pump
Axles(2) 3,500 lb spindles
Tire and WheelST235/80R-16E
Decking3/16" tread plate floor
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
- 4" x 20" hydraulic cylinder
- KTI hydraulic unit for raising/lowering
- auto-latch for locking/unlocking

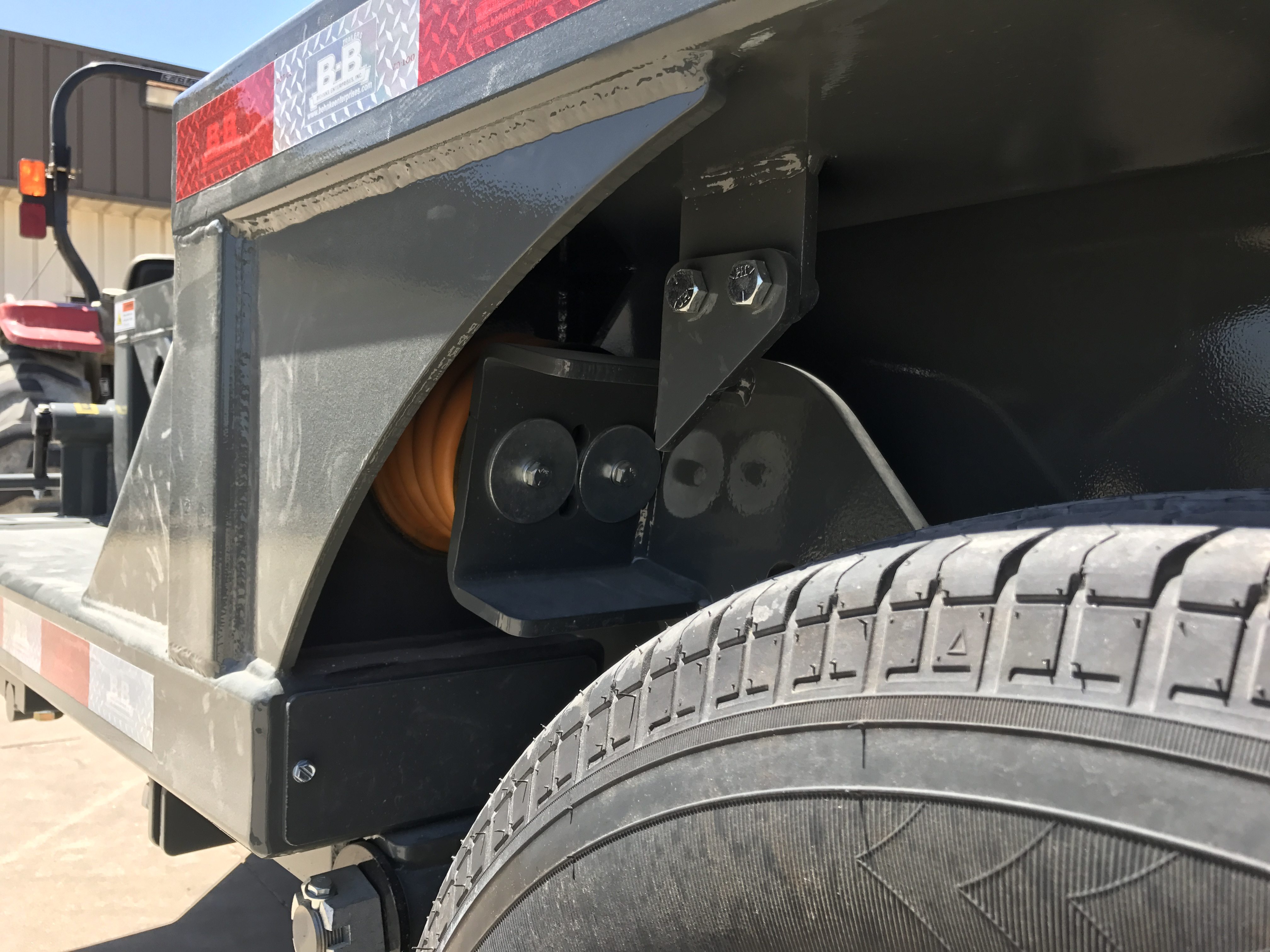

- Removable covers for rollings making maitenance easy
