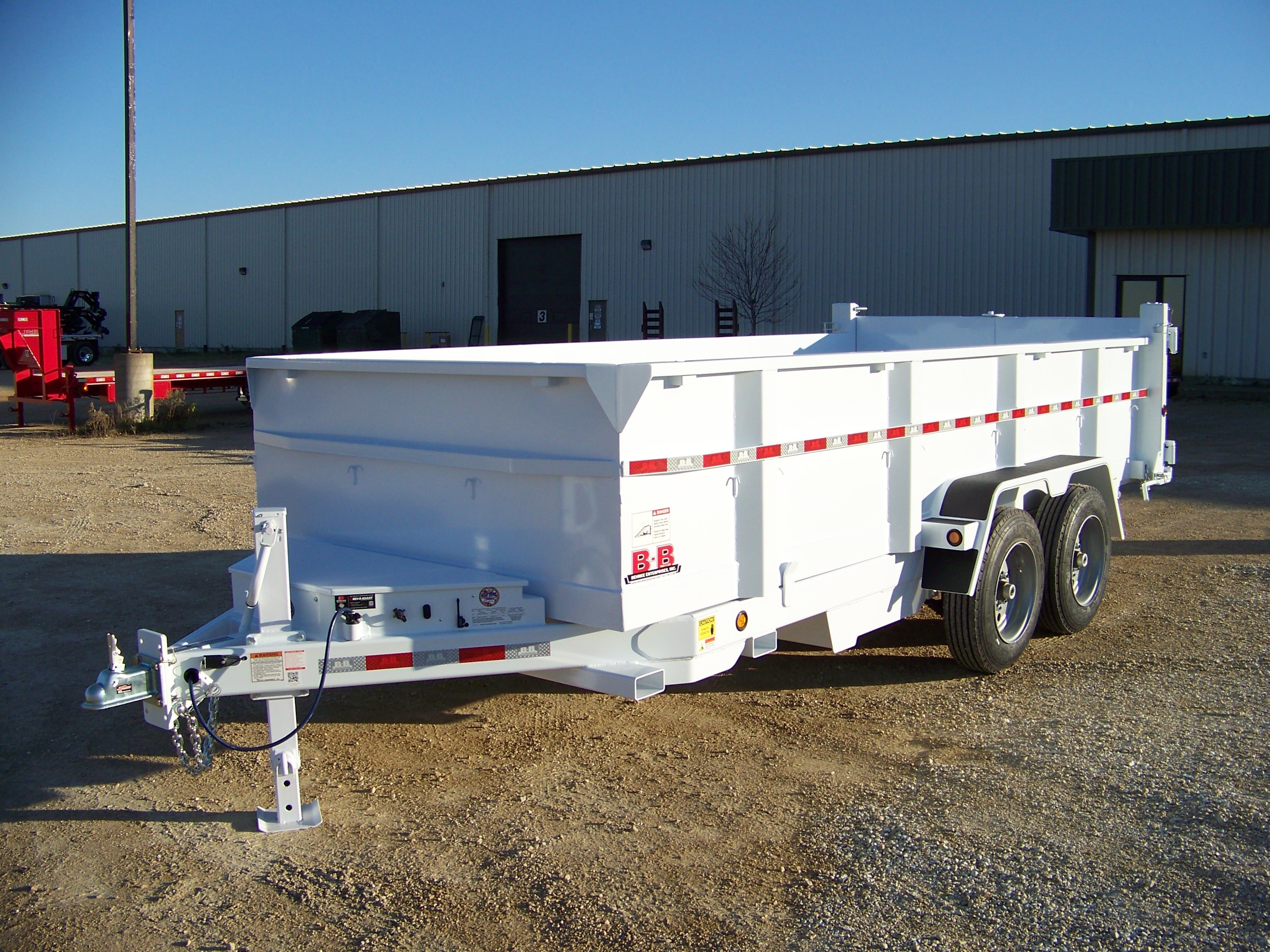

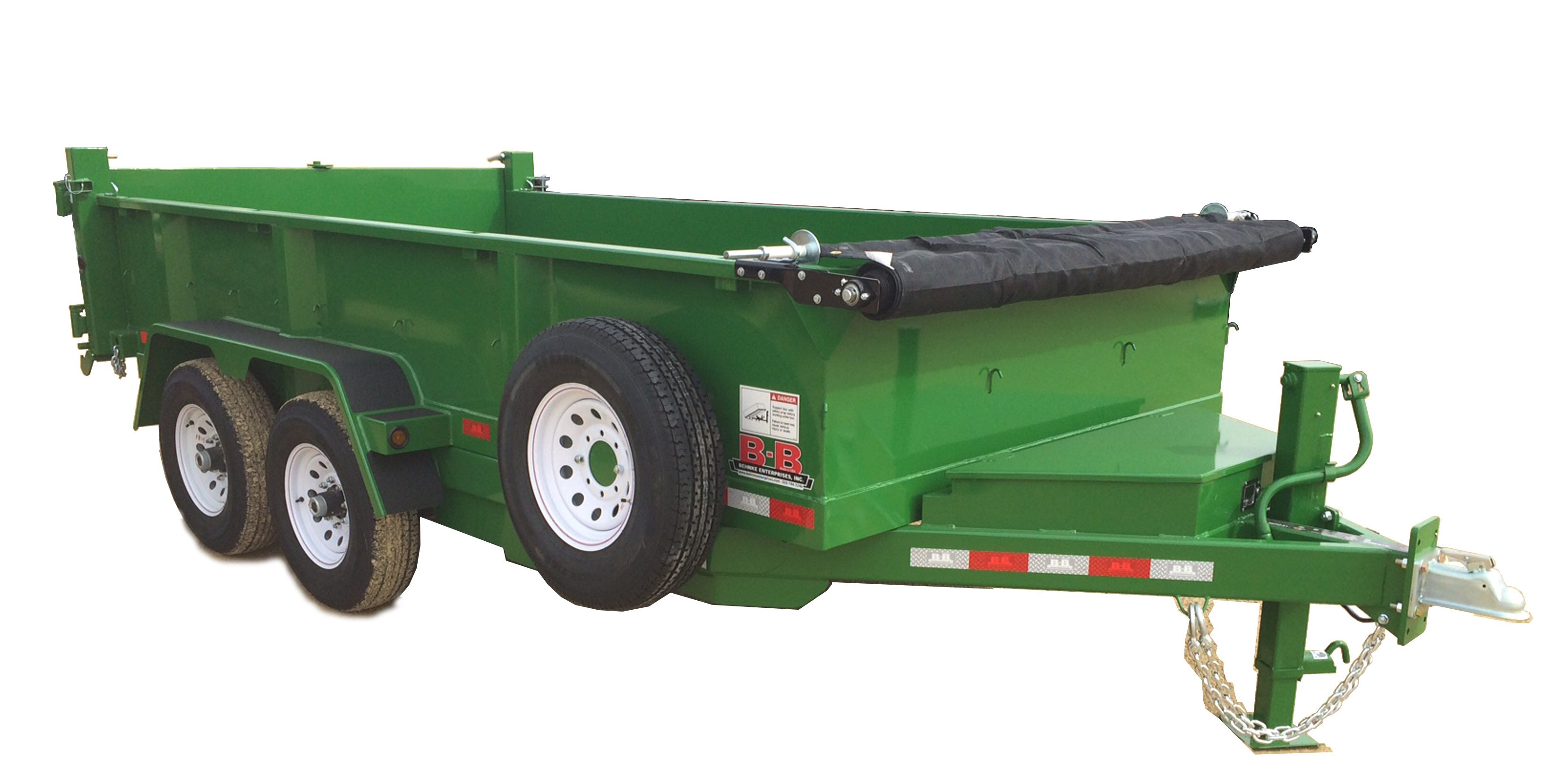

Our heavy duty dump model comes with a standard 83" box width and a beefy Scott brand scissors hoist to handle anything you throw at it. This model comes standard with a 3/16" steel floor that is completely welded. Available in 14,000 lb. and 16,000 lb. capacities with pull-type or gooseneck hitches.
GVWR14,000 or 16,000 lbs.
Weight5,100 or 5,800 lbs.
Length14' bed w/2' sides
Width83" (14K) or 81" (16K) wide box
Side Rails10 gauge steel sides
FendersHD Fully Welded 11 gauge
JackSingle 12K dropleg
Hitch2 5/16ʺ adj. coupler or pintle
Safety Chains(2) 3/8" Gr. 43
Tie-Downsstake pockets and (6) D-rings in box
StorageToolbox in tongue w/pump
Axles7,000 or 8,000 lb. Dexter
Tire and Wheel235/80R-16E or 215/75R-17.5H single
Decking3/16" steel floor
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated

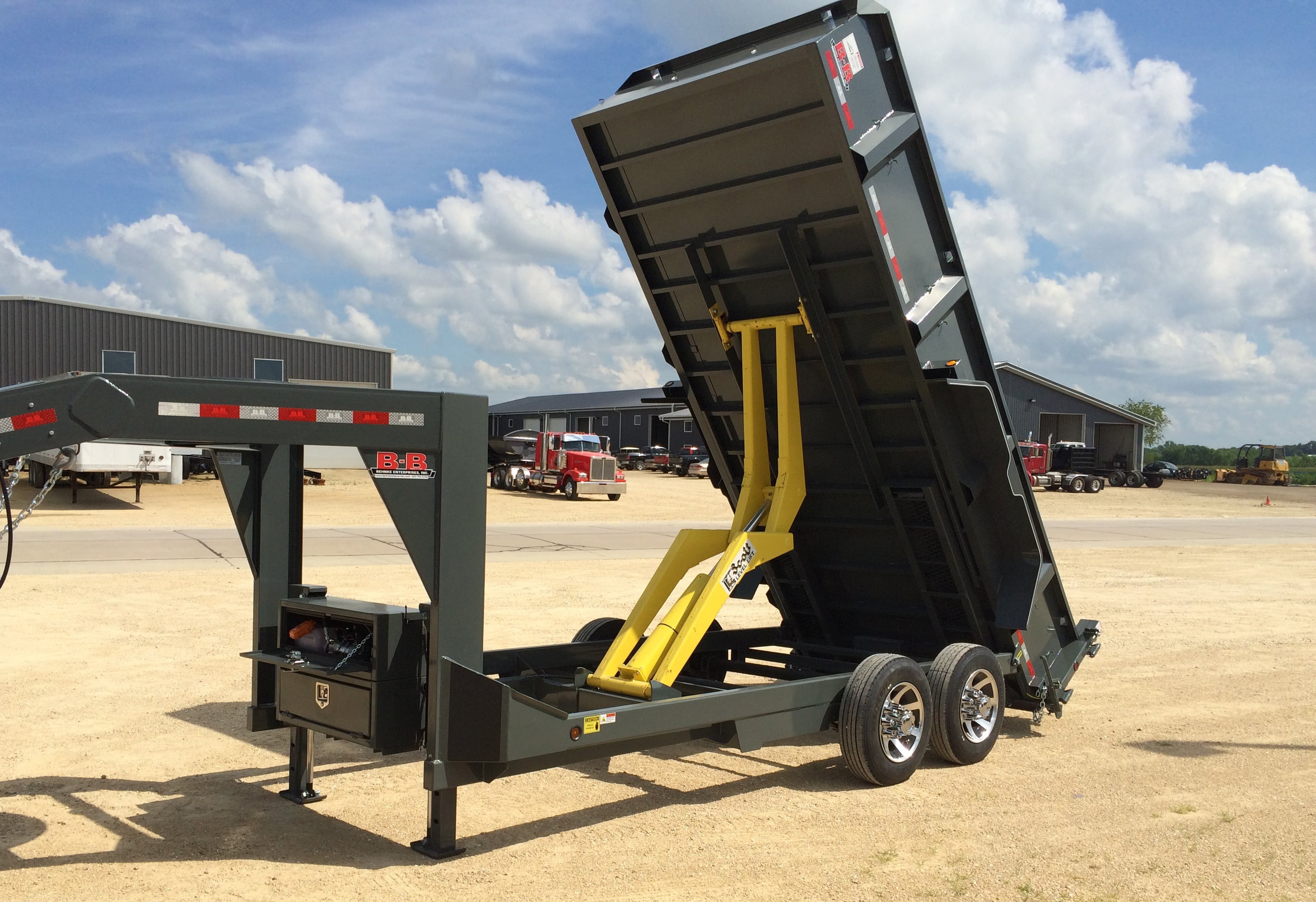

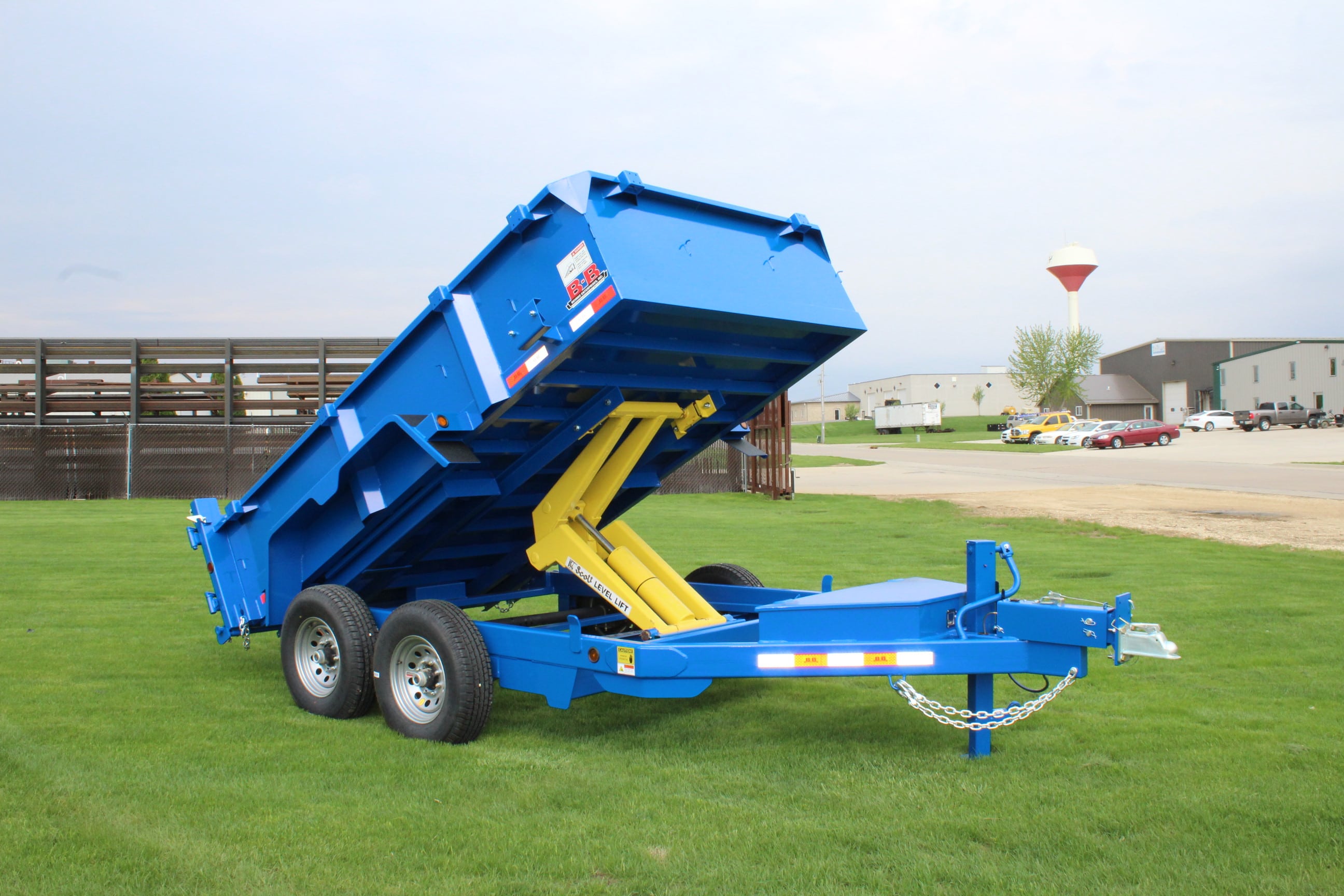

- HD Scott Scissor Hoist

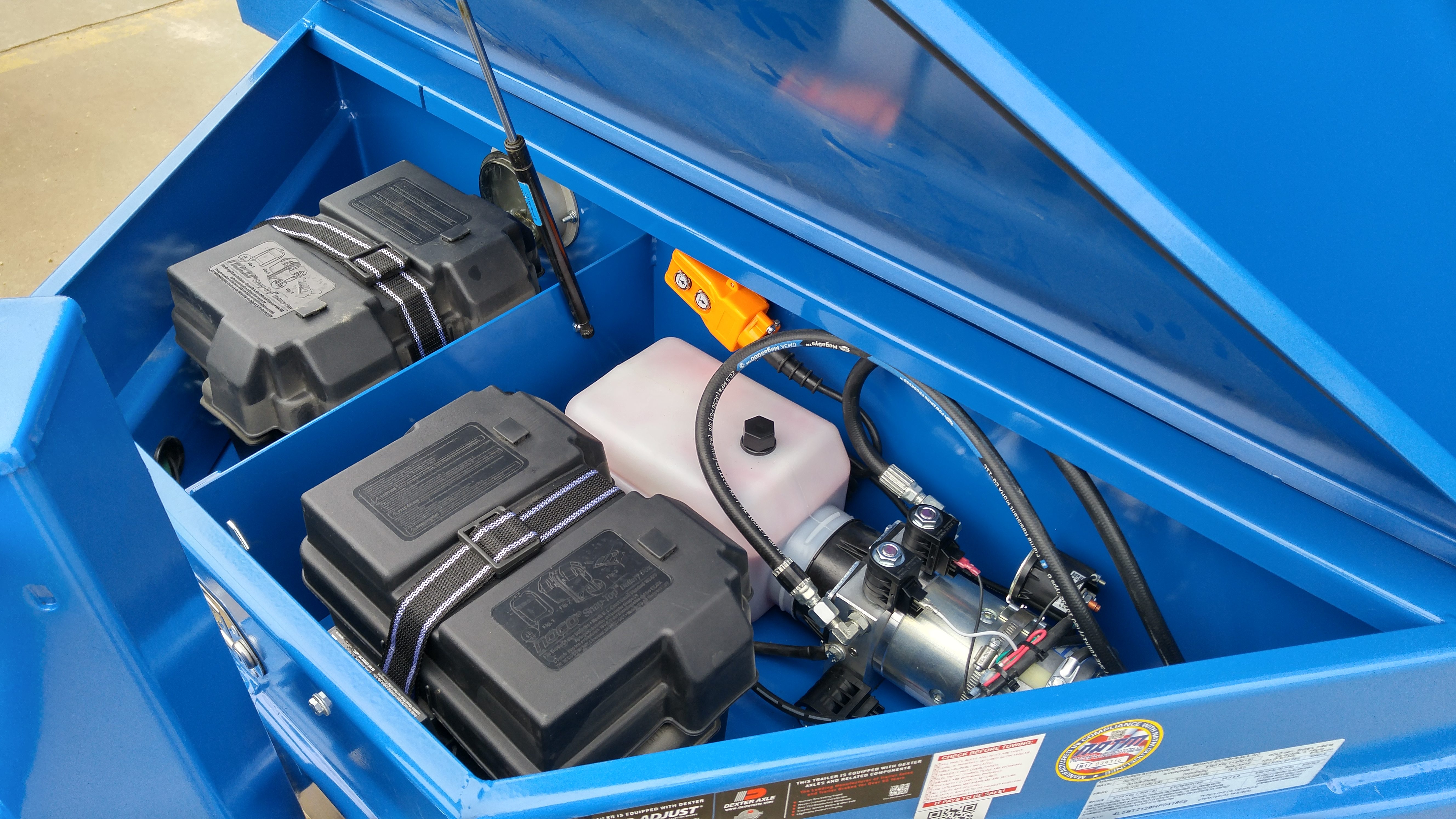

- KTI hydraulic unit for raising/lowering
- 3-way combination gate
- Available in 12-16' lengths w/2-3' sides
- Goosneck coupler available
