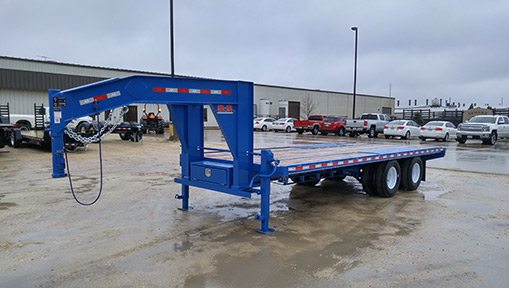

Our most popular selling flatbed, the 20,000 lb. GVW model is built with a rugged 12" x 19 lb. I-beam frame. This model also comes standard with convenience features, such as dual 2-speed jacks and a toolbox. Offered in bumper pull and gooseneck style hitches. Contact one of our dealers today to build the perfect flatbed trailer for whatever you are hauling.
Product Features
GVWR20,000 lbs
Weight7,520 lbs
Length25' bed' + 5' wood tail
Width102"
Frame12" x 19# I-beam
Unloaded Deck Height34"
Side Rails5 x 3 x 1/4" angle
Crossmembers3" channels
Fenders3/16" sheet
JackDual Speed, Dual 12K drop leg
Hitch2 5/16" adj. GN coupler
Safety Chains(2) 3/8" Gr. 70
Tie-Downsstake pockets and rub rail
Storage(1) 12 x 18 x 48 and (1) 12 x 12 x 36 toolbox
Axles 10,000 lb. GD Dexter Oil Bath
SuspensionDexter Spring
Tire and Wheel235/80R-16E duals
Decking2 x 8 No. 1 Treated pine
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
Details
- 16'-40' lengths available

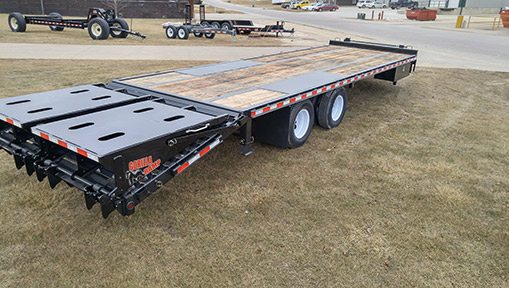

- gorilla-angle iron-wood-center flip-up beavertails available
- available in pull-type pintle hitch
- available in straight deck
