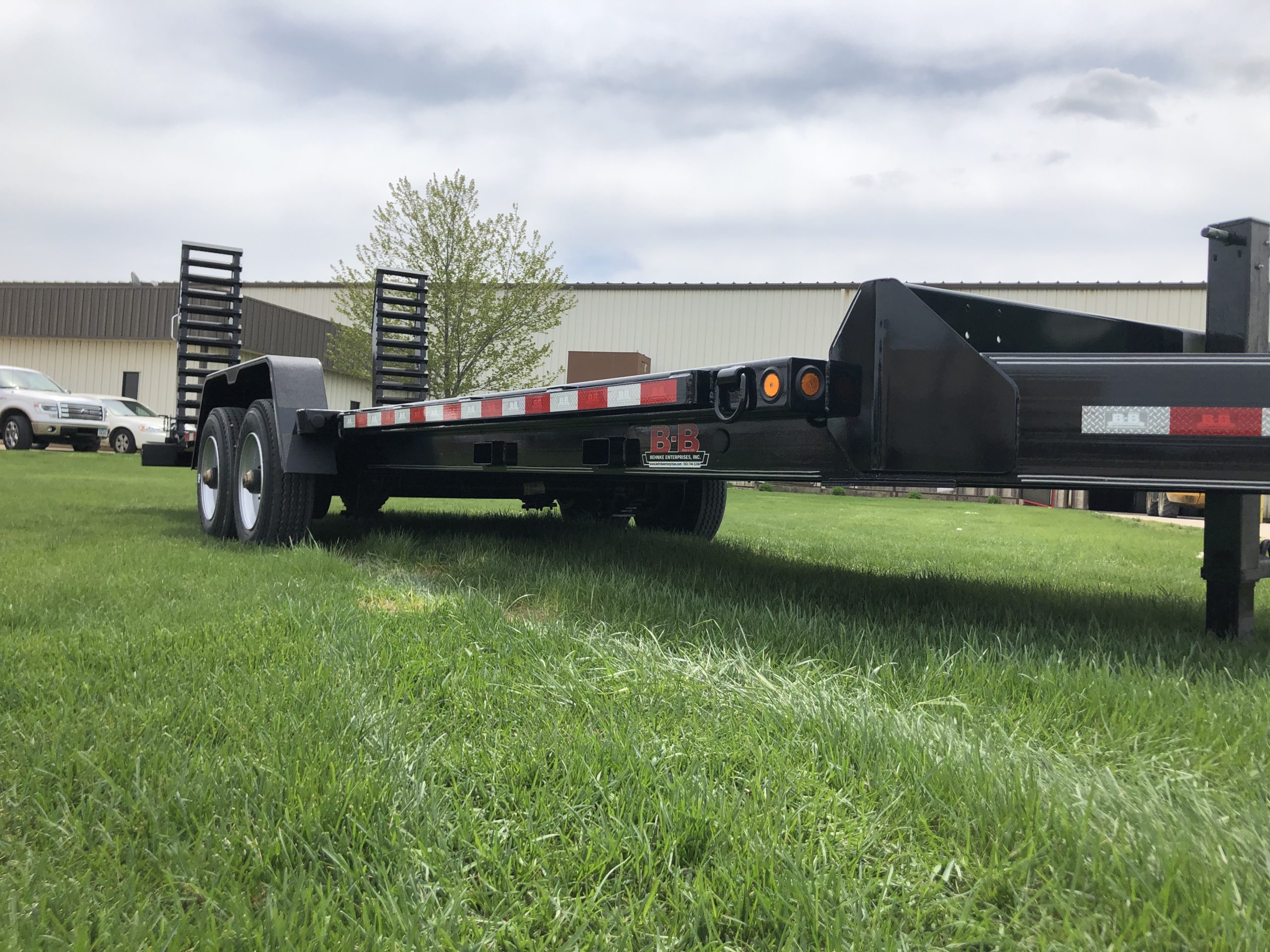

The 24,000 lb. GVW HD channel equipment trailer is a monster, it comes standard w/ (2) 12,000 lb. electric brake axles and is built out of a heavy 10" x 20 lb. continuous channel frame. This trailer is also equipped with 17.5 super single tires to handle the heavy loads it can haul. There is a full 83" between fenders and fender guards also come standard on the 24K HD model to help guide skidloader buckets in between the fenders. Standard tie downs include D-rings and chain slots to tie-down heavy equipment. Pull-type and gooseneck configurations are available.
Product Features
GVWR24,000 lbs.
Weight5,620 lbs.

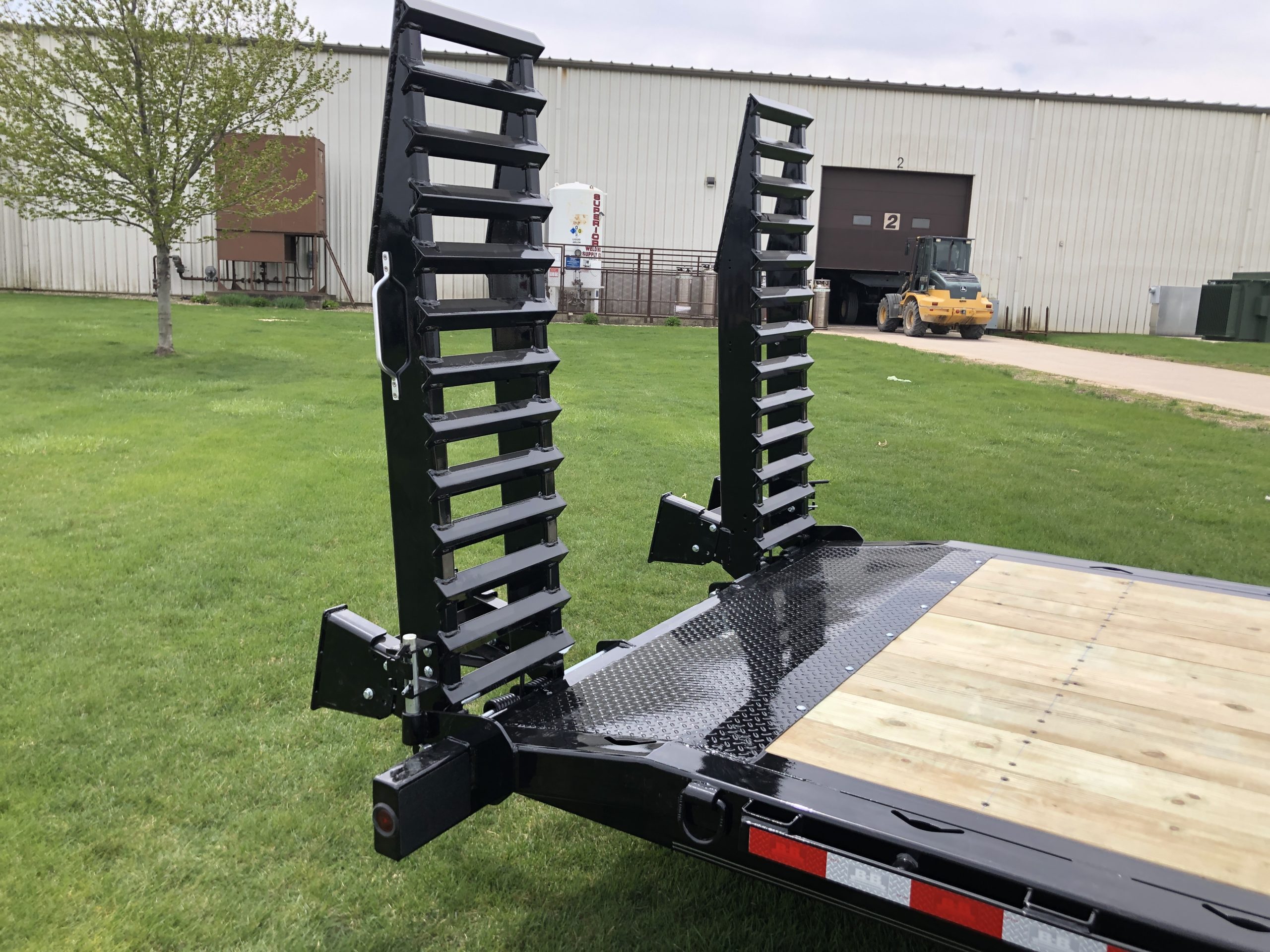

Length18-24' bed + 2 or 3' diamond tread tail w/5' or 6' HD tube style stand up ramps
Width83" between fenders
FrameContinuous 10" x 20# channel for whole frame
Unloaded Deck Height27"
Crossmembers3" channels
FendersHD Fully Welded 11 gauge w/fender guides
JackSingle 12K dropleg
Hitch2 5/16ʺ adj. coupler or pintle
Safety Chains(2) 1/2" Gr. 70
Tie-Downsstake pockets, (4) D-rings, and chain slots
StorageChain tray in tongue
Axles12,000 HD Dexter Oil Bath
SuspensionDexter Spring
Tire and Wheel235/75R-17.5 16 ply (6,005 lb. load rating) super single
Decking2 x 8 No. 1 Treated pine
LightsLED flush mount
Elect. PlugRV plug
Finish and PaintBead blasted, acid washed, zinc rich primed, powder coated
Details
- Available in 20'-26' lengths
- pallet forks standard
- true 83" wide between fenders
- flush floor
- Able to bolt-on toolbox and spare tire mount on standard trailer
